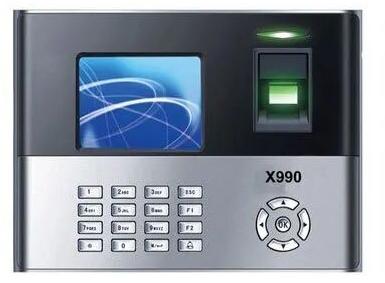

Fingerprint Attendance System, Operating Temperature : -20 To +80 Degree Celcius

₹ 10,500 / unit

Operating Temperature-20 to +80 Degree Celcius
Memory Capacity256 MB
Type Of SystemFingerprint Recognition Systems
Resolution500 DPI
Supply TypeManufacturer, Exporter, Supplier, Retailer, Distributor, Trader
Preferred Buyer Location All over the world

Product Details

Operating Temperature-20 to +80 Degree Celcius
Sensor TypeOptical Sensor
Resolution500 DPI
Identification Time< 1s
CommunicationRS485, RS232
Memory Capacity256 MB
CertificationsIP65
Installation TypeWall Mounted
Type Of SystemFingerprint Recognition Systems
Screen Size2.5 Inch
Battery Back-Up4 - 8 hours
Fingerprint Users10,000

Technical Specification
Storage capacity	Fingerprints templates	10000
	Card Storage	10000
	Transaction storage	1,00,000
	Card reader	Inbuilt proximity card reader( optional Mifare,HID prox)
	CPU	800 Mhz 32 bit Microprocessor
Biometric	Fingerprint sensor	500 DPI Optical sensor
	FAR	<=0.0001%
	FRR	<=1%
	Identification speed	<0.5 sec
	Algorithm Ver	10
Audio/Visual	Display	3" Color TFT
	Keypad	Yes
	LED Indicator	Green/Red
	Schedule Bell/Speaker	Mini Speaker
Communication	Communication	TCP/IP, USB, ( Optional : Wifi, GPRS, GPRS+ GPS)
	Push data	yes (support both static IP and domain server)
	Standard features	work code,SMS,DLST, Self service query, Status Switch
Power & environment	Power Supply	DC 12V: 1.5Amp
	Operating Temperature	0oC to 45oC
	Operating Humidity	20% -80%
	Dimension	210x157x40
Access control	Wiegand	In & Out both 26 or 34 bit (With or without site code)
	Relay	12 V relay for lock EM lock, Bolt Lock or Strike lock
	Support Fire Alarm	Yes
	Door Sensor	Yes
	Anti Passback	Yes
	Door Bell	Yes
Exit Readers	Support exit readers	101 HE , FR 1200, Push Button, KR500, Notouch, KR503
Optional	Battery	yes
	Card readers	Mifare/HID Prox/HID Iclass
	Communication	Wifi/GPRS
	Sensor	Mifare/HID Prox/HID Iclass
Compatibility		Compatible with Multi Door controllers via weigand
		External Speaker output available (Optional)
		External Bulb output available (Optional)
		Support External Printer
Compatible Software and SDK		etime track lite desktop & web
		SDK for desktop applications
		Web based Device Manager/ePush server using Push data. Helps developers & integrators
		Supports 3rd Party Payroll/HRMS/ERP and Other applications

Major Applications		Time & Attendance , Canteen management, School attedance,
		Production Management, Gym & clubs
