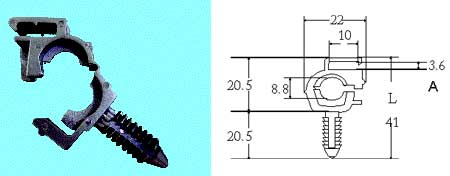

Contact SupplierThis Fir Tree push clamp is uniquely designed to secure cables / pipes to chassis' by just pushing the clip through a hole dia of 6.8 mm and a panel thickness range of 0.7 - 11 mm without the aid of any fixing tool. Once clamped down, the internal locking feature engages to provide very strong retention force to offset both direct vertical and side to side load forces. The extended Fir Tree allows for a wide range of panel thickness. The staggered Fir Tree branch design provides low insertion forces and high extraction forces.
APPLICATION :The clip finds application in wire harness, automotive trucking and heavy equipment manufacturing industries.
Novoflex Part No. |
Nominal Overall Length L (mm) |
Panel Thickness (mm) |
Push Hole Dia (mm) |
Max Cable Bundle - Dia (mm) |
Standard Packing |
FTC - 01 | 41 | 41 | 100 Nos. |
