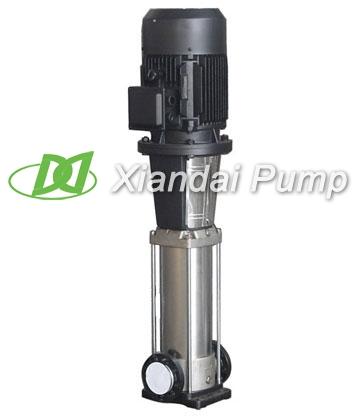

Contact SupplierWe are offering fire fighting pump.
G.w.: 345kg
volume after packed: 0.42m3.
Color: stand color (black, red and blue) & special requirement.
Liquid: thin, clean, non-flammable and non-explosive liquid containing no solid granules and fibers.
Ambient temperature: up to +40℃
altitude: up to 1000m
connection: flange or female thread
temperature range: normal temperature (-15℃ ~ +70℃), high temperature(+70℃ ~ +120℃)
material: cast iron, ss304 or ss316
mechanical seal: cartridge mechanical seal type.
Diameter of connection: dn80
motor power: 30kw (40hp)
motor: 3/380v/50hz, any special voltage required is available.
total-enclosed fan-cooled two-pole stand motor
protection class: ip55
insulation class: f
rated flow: 42m3/h
flow range: 25m3/h~55m3/h
rated head: 142m.
Head range: 166m~109m.
