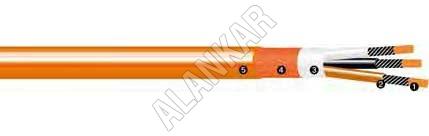

Fire Resistant Armoured Power and Control Cable

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Fire Resistant Armoured Power and Control Cable (0, 6/1kV), which we make available, is manufactured in accordance with the established industrial standards. We offer the at the market leading rates....

View More Details

Send Enquiry

Company Information

Alankar Cable Industries

Shalimar Bagh, Delhi

View Number

Member Since 17 Years
Nature of Business Retailer
Year of Establishment 1971

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Fire Resistant Armoured Power and Control Cable (0, 6/1kV), which we make available, is manufactured in accordance with the established industrial standards. We offer the at the market leading rates to the clients. We are an experienced Manufacturer, Supplier and Exporter of Fire Resistant Armoured Power and Control Cable from Delhi.
Applications

For fixed installation in most areas and on open deck in ships.
If the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended

Highlights

Minimum recommended installation temperature -15 ^oC
Lowest operation temperature -40 ^oC
Core Identification : see technical information section
Identification : Lot number, cable type, cable size, voltage, temperature, standards, production month, manufacturer's name and meter marking printed on the sheath

Main Characteristics

Rated voltage	0,6/1kV (1,2kV)
Maximum conductor temperature	+ 90 ^oC
Flame-retardant	IEC 60332-1-2 -test for single insulated wire and cable IEC 60332-3-22 -test for bunched wires and cables, category A
Fire-resistant	IEC 60331-21 series
Halogen-free	IEC 60754 series
Smoke emission	IEC 61034 series

Specification

LKSM-FRHF 0,6/1kV		Number ofconductors & cross-section n x mm²	Crosssection of screen mm²	Nominal outer diameter Mm	Approximate weight kg/km	Currentrating A	Min. bending radius fixed installation Normal G-type mm
Part number
Normal	G-type
28 576	–	1x10	3,4	10	195	72	60
28 578	–	1x16	3,9	11,0	270	96	70
28 580	–	1x25	4,7	13,0	390	127	80
28 582	–	1x35	5,4	14,0	495	157	85
28 584	–	1x50	8,6	16,5	670	196	100
28 586	–	1x70	9,8	18,5	925	242	115
28 588	–	1x95	11,0	20,5	1185	293	125
28 590	–	1x120	12,2	22,5	1485	339	135
28 592	–	1x150	13,5	25,0	1780	389	150
28 94	–	1x185	14,9	28,0	2190	444	170
28 596	–	1x240	16,8	30,5	2830	522	185
28 598	–	1x300	18,5	34,0	3470	601	205
28 602	–	2x1,5	4,0	11,0	140	20	70
28 604	–	2x2,5	4,4	11,5	175	26	70
28 606	–	2x4	5,0	13,0	225	34	80
28 608	–	2x6	5,6	14,0	340	44	85
28 610	–	2x10	8,8	16,5	505	61	100
28 612	–	2x16	10,2	19,0	700	82	115
28 622	28 623	3x1,5	4,3	11,0	170	16	70
28 624	28 625	3x2,5	4,8	12,5	220	21	75
28 626	28 627	3x4	5,3	13,5	280	28	85
28 628	28 629	3x6	8,6	15,0	430	36	90
28 630	28 631	3x10	9,5	17,5	595	50	105
28 632	28 633	3x16	11,0	20,0	845	67	120
28 634	28 635	3x25	13,9	25,0	1295	89	150
28 636	28 637	3x35	15,7	28,0	1655	110	170
28 638	28 639	3x50	18,1	32,0	2180	137	195
28 640	28 641	3x70	20,9	37,0	3015	169	225
28 691	28 692	3x95	32,2	42,0	4050	205	255
28 693	–	3x120	35,9	46,0	4945	237	280
28 642	28 643	4x1,5	4,7	12,5	205	16	75
28 644	28 645	4x2,5	5,3	13,5	260	21	80
28 646	28 647	4x4	8,6	15,5	370	28	95
28 648	28 649	4x6	9,1	16,5	505	36	100
28 650	28 651	4x10	10,6	19,5	720	50	120
28 652	28 653	4x16	12,2	22,5	1050	67	135
28 654	28 655	4x25	15,5	27,5	1570	89	165
28 656	28 657	4x35	17,5	30,5	2040	110	185
28 658	28 659	4x50	20,2	35,5	2700	137	215
28 662	28 663	5x1,5	5,2	13,5	245	14	80
28 664	28 665	5x2,5	5,8	14,5	310	18	90
28 666	28 667	7x1,5	5,8	14,5	295	12	90
28 668	28 669	7x2,5	8,8	16,5	415	16	100
28 670	28 671	12x1,5	10,7	19,0	495	10	115
28 672	28 673	12x2,5	12,0	21,5	665	13	130
28 674	28 675	19x1,5	12,8	22,5	705	9	135
28 676	28 677	19x2,5	14,4	25,0	950	11	150
28 682	28 683	27x1,5	15,6	27,0	965	8	160
28 686	28 687	27x2,5	17,5	30,0	1325	10	180
28 684	28 685	37x1,5	17,7	30,0	1260	7	180
