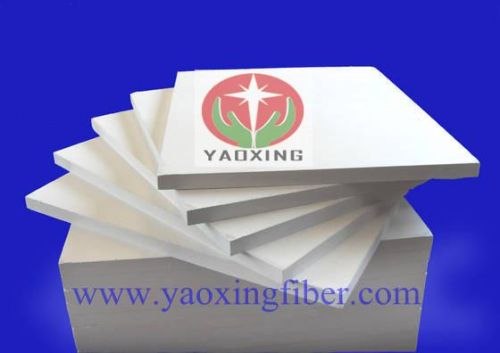

Fire Resistant Ceramic Fiber Board, Packaging Type : White

Vacuum Formed Boards
1.YAO XING ceramic fiber boards are high performance insulation products manufactured from ceramic fiber (or with alumina fiber) and binders ,with YAO Xing�s unique shot removing and vacuum forming process, provide excellent high temperature stability, extra low thermal conductivity, high compressive strength.
2.YAO XING ceramic fiber boards can be easy to saw, drill and die-cut, used as hot-face or back-up thermal insulation in various high temperature applications in furnaces, kilns etc. Additional hardness and strength can be reached with post treatments. Available in variety of compositions, densities, sizes and post treatments combinations, YAO XING ceramic fiber board is one of the most versatile products available to the industry today.
Classification Temperature 1050°C�1260°C, 1400°C�1600°C
Density: 280-650kg/m3
Advantages
1.High temperature stability
2.Low thermal conductivity
3.Low heat storage
4.Non-wetting to molten aluminum
5.Good flexural and compressive strength
6.Close tolerance with excellent surface finish
7.Easy to cut, drill or saw
Availabilities
Thickness: 5-100mm
Dimension: 900 x 600mm, 1000 x 500mm,
1200 x 1000mm�600 x 400mm
Applications
1.Furnace linings
2.Kiln furniture
3.Hot gas duct linings
4.Refractory backup insulation
5.Launder insulation
6.General molten metal contact
7.Fire protection systems
8.Glass tank side and wall insulation
9.Expansion joint material
10.Combustion chamber insulation
11.High temperature gasket and seals
