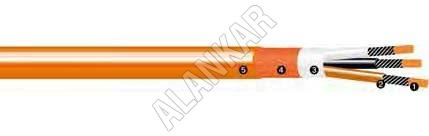

Fire Resistant Unarmoured Power and Control Cable

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Fire Resistant Unarmoured Power and Control Cable (0,6/1kV), which we make available, is manufactured using the best-grade materials. We offer these Fire Resistant Unarmoured Power and Control Cable....

View More Details

Send Enquiry

Company Information

Alankar Cable Industries

Shalimar Bagh, Delhi

View Number

Member Since 17 Years
Nature of Business Retailer
Year of Establishment 1971

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Fire Resistant Unarmoured Power and Control Cable (0,6/1kV), which we make available, is manufactured using the best-grade materials. We offer these Fire Resistant Unarmoured Power and Control Cable and Control Cables at the market leading rates. We are a dependable Manufacturer, Supplier and Exporter of Fire Resistant Unarmoured Power and Control Cable and Control Cable.
Applications

For fixed installation in most areas and on open deck in ships.
If the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended

Highlights

Minimum recommended installation temperature -15 ^oC
Lowest operation temperature -40 ^oC
Core Identification : see technical information section
Identification : Lot number, cable type, cable size, voltage, temperature, standards, production month, manufacturer's name and meter marking printed on the sheath

Main Characteristics

Rated voltage	0,6/1kV (1,2kV)
Maximum conductor temperature	+ 90 ^oC
Flame-retardant	IEC 60332-1-2 -test for single insulated wire and cable IEC 60332-3-22 -test for bunched wires and cables, category A
Fire-resistant	IEC 60331-21 series
Halogen-free	IEC 60754 series
Smoke emission	IEC 61034 series

Specification

LKSM-FRHF 0,6/1kV		Number of conductors & cross-section n x mm²	Nominal outer diameter Mm	Approximate weight kg/km	Current rating A	Min. bending radius fixed installation mm
Part number
Normal	G-type
28 132	–	2x1,5	9,5	100	20	60
28 134	–	2x2,5	10,5	125	26	65
28 136	–	2x4	11,5	165	34	70
28 138	–	2x6	13,0	265	44	80
28 140	–	2x10	15,0	380	61	90
28 142	–	2x16	17,5	555	82	105
28 162	28 163	3x1,5	10,0	125	16	65
28 164	28 165	3x2,5	11,0	160	21	70
28 166	28 167	3x4	12,5	220	28	75
28 168	28 169	3x6	13,5	325	36	85
28 170	28 171	3x10	16,0	490	50	100
28 172	28 173	3x16	18,5	725	67	115
28 174	28 175	3x25	23,0	1100	89	140
28 176	28 177	3x35	26,0	1470	110	160
28 178	28 179	3x50	30,0	1955	137	180
28 180	28 181	3x70	35,0	2780	169	210
28 202	28 203	3x95	39,0	3655	205	235
28 182	28 183	4x1,5	11,0	150	16	70
28 184	28 185	4x2,5	12,5	205	21	75
28 186	28 187	4x4	13,5	280	28	85
28 188	28 189	4x6	15,5	410	36	95
28 190	28 191	4x10	18,0	605	50	110
28 192	28 193	4x16	20,5	915	67	125
28 194	28 195	4x25	26,0	1405	89	155
28 196	28 197	4x35	28,5	1875	110	175
28 198	28 199	4x50	33,5	2510	137	205
28 212	28 213	5x1,5	12,0	190	13	75
28 214	28 215	5x2,5	13,5	251	17	80
28 216	28 217	7x1,5	13,0	235	12	80
28 218	28 219	7x2,5	14,5	315	16	90
28 220	28 221	12x1,5	17,5	380	10	105
28 222	28 223	12x2,5	19,5	525	13	120
28 224	28 225	19x1,5	21,0	580	9	130
28 226	28 227	19x2,5	23,0	795	11	140
28 232	28 233	27x1,5	25,0	800	8	155
28 234	28 235	37x1,5	28,5	1055	7	170
