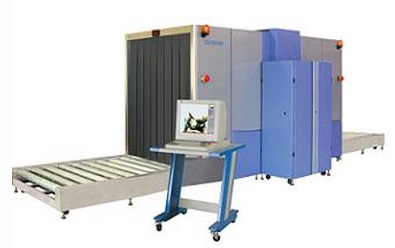

Contact Supplierwe are offering fiscan cmex-160190a multi-energy x-ray security inspection system.
fiscan® cmex-160190a is a multi-energy x-ray security inspection system for cargo equipped with state-of-the-art x-ray imaging technology. it provides high resolution and ultra-clear images for easy object identification with the latest technology of computer control and image processing. the tunnel size allows inspection of large articles. it is ideal for security inspection at airports, customs, railway stations, seaports, warehouses, nuclear power stations, meeting locations, ld3 containers and other large-sized goods.
features performance parameters:
weight: approx.5000kg
dimension:7724(l)× 2557(w)× 2433(h)mm
tunnel size:1647(w)× 1925(h)mm
resolution:φ0.202mm wire
penetration:50mm steel
dose per inspection:less than 3μsv, safe for film up to asaiso 1600, complying with health and safety regulations of radiation equipment and all published international standards
anode voltage:250 kv
conveyor speed:approx. 0.20ms
conveyor height:350 mm
max. load:3000 kg
power consumption:approx. 1.8kva
