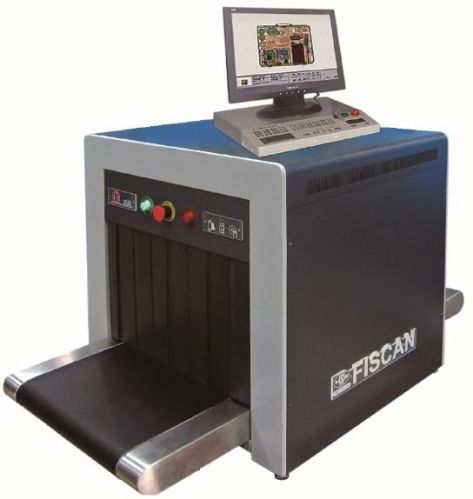

Contact Supplierwe are offering fiscan cmex t5030 multi energy x-ray security inspection system. fiscan® cmex-t5030 is a multi-energy x-ray security inspection system equipped with state-of-the-art x-ray imaging technology. it provides high resolution and ultra-clear images for easy object identification with the latest technology of computer control and image processing. the tunnel size allows inspection of large articles. it is ideal for security inspection at airports, customs, railway stations, government buildings, mailrooms, courts and many other public gathering situations.
features performance parameters:
weight: approx.100kg
dimension:1283(l) × 720(w) × 734(h) mm
tunnel size:536(w) × 344(h) mm
resolution:φ0.10mm wire
penetration:17 mm steel
dose per inspection:1μsv, safe for film up to asaiso 1600, complying with health and safety regulations of radiation equipment and all published international standards
anode voltage:100 kv
conveyor speed:approx. 0.18ms
conveyor height:153 mm
max. load:60 kg
power consumption:approx. 0.5kva
