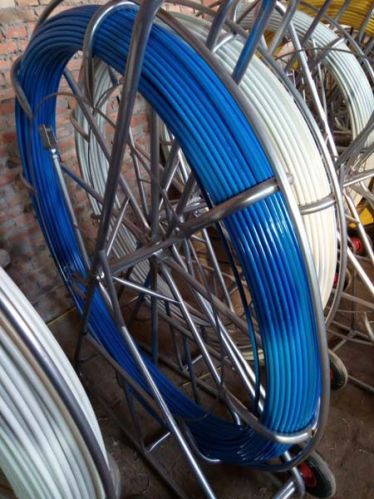

Fish Tape

We offer fish tape.
Constructed of fiberglass reinforced in the center and consists of a rugged plastic layer that would ensure the lifetime of the flexible rod.
Assembly: metal frame and rubber wheels, wheel assembly for easy transportation;
guide rollers and the right parts for rotary coupling; parking brake for the flexible rod.there is copper wire inside for tracing easily.
Polyethylene cover: medium density polyethylene resin for the insulating and jacketing of cables.
technical date of fiberglass duct rodder
specification
rod diameter (mm) φ 4.5-φ 16
rod length (m) 30m~500m
frame spec. (mm) 1300x450x1330,1200x420x1220,980x350x1000,680x240x700, 420x180x400,etc.
Material: fiber glass rod inner, extruded by fiber glass and high strength resin at high temperature
fiber glass rod outer, high density polyethylene coating
metal frame: steel with high-temperature sprayed plastic or hot dip galvanized
physical property
fiber glass content:75-80%
density > 1.9grcm3
working environment-40° c to +80° c
minimum pulling strength 4000n +-5%
consistency of rod 137grm
flexural modulus > 46.500mpa
elongation at break 2.5-3%
min bending radius 388mm
