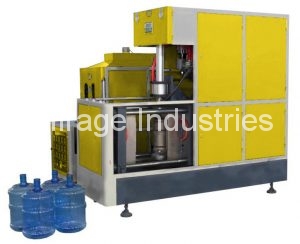

Five Gallon Stretch Blow Molding Machine, Power : 9-12 kw

Company Information

Ask for more detail from the seller

Report incorrect details

Features :

Special design for PET Gallon Bottles up to 6 Gallon.
Produce wide mouth bottle up to 25 liters with neck size up to 200mm.
Uses infrared reheat units to achieve uniform heating throughout the wall of preform.
Adopts special designed preform heating system to ensure the optimal heating effect for 740g thick-preform.
Special designed fan-cooling system in the heating channels to keep the oven with constant temperature and ensure the preform can be heated completely.
Water cooling system ensures the quality of preform neck.
Up to 90 bottles/hour using one-cavity mold for 5-gallon bottle.
Use advanced PLC control system with counting function and time-control precision to 0.01 seconds and a user-friendly panel.
Equipped with specially designed air storage units.
Simple installation and startup adjustments.

Model	Item	Unit	JND-CP-90
Container	Product material	/	PET/PC/PE
	Container volume	L	5-6 (2-cavity) 10-25 (1-cavity)
	Theoretic output	Pcs/hr	5gallon: 90 5L: 400
	Preform inner diameter	mm	15-200
Molding	Max mold plate dimension (LxW)	mm	420×500
	Max mold thickness	mm	400
	Clamping force	KN	100
	Mold opening stroke	mm	330
Air Compressor	High pressure compressor	m3/Mpa KW	≥0.60/3.0
	Air pressure for blowing	Mpa	2.0-3.0
	Low pressure compressor	m3/Mpa KW	≥0.8/1.25 7.5
Main Machine Electricity	Power	M	15
Main Machine Electricity	Voltage/frequency	V/Hz	380-240-110/50-60 (3phase)
Machine Size and Weight	Main machine	M	1.55×0.82×2.00
	Main machine weight	T	1
	Heater (LxWxH)	M	2.42×0.65×1.60
	Heater weight	T	0.38
	High pressure compressor (LxWxH)	M	1.90×0.75×1.50
	Air filter	Kg	10x2pcs
Safety	Auto emergency alarm	Safety inter-locking device
