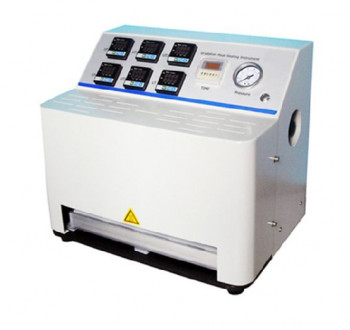

Five Point Heat Sealer, Brand Name : Cell Instruments for package test

Five point heat sealer is for the determination of the heatsealability of a surface, or sealant layer of films, laminates, composites and polymers etc. The ghs-01 is the gradient model that can measure five groups of sealing temperature at the same time.
Five point heat sealer has the following features:
1.five groups sealing temperature can be measured with one test
2.precise dwell time and sealing pressure control
3.p.i.d. Sealing temperature control
4.uniform heating by aluminum encapsulated sealing jaws and no inhomogeneous heating
5.independent upper and lower sealing jaw heating
6.sealing jaw customization available in term of dimension, shape and surface
technical data
sealing temperature room temperature ~ 250℃
temperature gradient ≤20℃
deviation ±0.2℃
dwell time 0.1 s~990h
sealing pressure 0.15 mpa ~ 0.7 mpa
sealing jaws 40mm×10mm×5(sealing surface)(customization available)
double heating of upper and lower jaws
gas pressure 0.5 mpa~0.7 mpa of air
dimensions 455mm (l) *320mm (w) *440mm (h)
port size ф6 mm pu hose
five point heat sealer standards
astm f2029, qbt 2358, ybb 00122003
