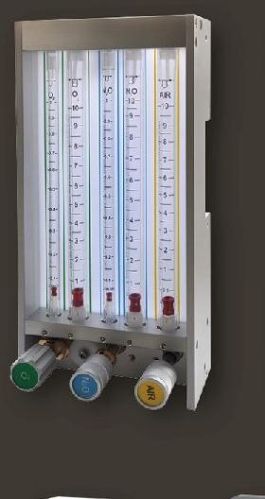

Five Tube Flowmeter

Listing ID #6152593

Get Latest Price

N2o CutoffBuilt-in Fitted At Back
Air Tube Range of Flow0.1 – 15 L/min Graduations in Lpm Unit
Accuracy (o2, N2o & Air)As per Iso-5358
FloatAluminium-is-6063,Anodised Red –for O2, N2o & Air
Supply Type Exporter, Supplier

Preferred Buyer From : All over the world

View More Details

Send Enquiry

Product Details

Air Inlet 6 Mm Festo Connection from Rear Bottom ,(straight)
Control Knob N2O Aluminium Serrated, Serration Depth <1mm, Knob Dia Lower Than Oxygen Knob Dia
Markings/identification Float Mark On Tubes & other Markings as per Iso 5358
Float Aluminium-is-6063,Anodised Red –for O2, N2o & Air
Accuracy (o2, N2o & Air) As per Iso-5358
Metering Tube Borosilicate Glass.
Air Tube Range of Flow 0.1 – 15 L/min Graduations in Lpm Unit
Oxygen Inlet 6 mm Festo connection from rear bottom ,(Straight)
Mixed Gas Outlet 6 Mm Festo Connection from Rear ,Top,(straight)
Compliance To Iso-5358, Rohs
Control Knob Air Aluminium, serrated, serration depth <1mm, knob dia lower then Oxygen knob Dia.
Tube Length (o2, N2o & Air) 220 Mm
Tube Fitting Arrangement Left-o2, Middle-n2o, Right –air (o2.lf-o2.hf) –(n2o.lf-n2o.hf)- (air)
Oxygen Tube Range High Flow 1 – 10 L/min, with Graduations in Lpm Unit
N2o Tube Range Low Flow 0.1 – 1 L/min, with Graduations in Lpm Unit
N2o Tube Range High Flow 1 – 12 L/min, with Graduations in Lpm Unit
Hypoxia Unit Geared Type Fitted with the Frame,
Mounting Panel Mounting, as per Drawing
Material of Construction Brass-is-319 Natural Colour/aluminium Is-6063 Anodized Natural, O Rings & Washer Epdm
Housing Aluminum Frame, Acrylic Front, Background On White Acrylic Sheet.
Oxygen / N2o Ratio 30 + 5% of O2 At all Settings After N2o Flow Opening.
N2o Inlet 6 Mm Festo Connection from Rear Bottom ,(straight)
Control Knob Oxygen Aluminium with Special Profile as per Iso 5358,
Oxygen Tube Range Low Flow 0.1 – 1 L/min, with Graduations in Lpm Unit
Labels for Control Knob-o2/n2o/air O2-black On White Back Ground/n2o-white On Blue Back Ground /air-white On Black Back Ground.
N2o Cutoff Built-in Fitted At Back
Working pressure (max) 420 kPa (N2O, O2 &AIR)

Anaesthetic flowmeters are available in 2 – 5 tubes versions. The flowmeters (2-5 tube versions) can be supplied with or without Anti Hypoxia Device.
The housings are made from Aluminum and fitted with fine adjustment valves for easy control of the anaesthetic gases. The front cover is made from moulded acrylic. The devices have a phosphorescent “glow in the dark” (normally white) background for easy reading even in case of sudden darkness.
The knobs are made from finest quality ABS. The Oxygen knob has a touch coded profile and all the knobs are colour coded as per ISO 5358 requirements.
Internal gas connections are made using polyurethane tubes and Festo type connections. A non return valve in the downstream of the AHD ensures no flow of N2O in the respiratory circuit in the event of single fault condition when Oxygen line gets blocked.
Various options of inlet and outlet connections are available
