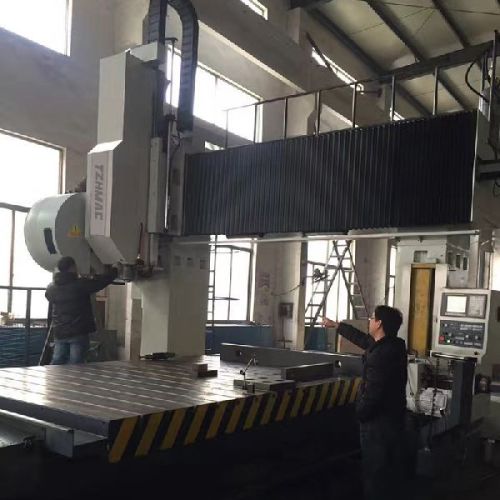

Fixed Beam Gantry Milling Machine, Brand Name : TZHMAC

₹ 90.50 Lakh - ₹ 1.63 Cr / Piece

MOQ1 Set(s)
Packaging TypeTo customer design
Brand NameTZHMAC
CertificationCE ISO
ConditionNEW
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Company Information

Member Since 7 Years
Nature of Business Supplier
Year of Establishment 1993

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Number Of FlowerCNC
Brand NameTZHMAC
CertificationCE ISO
Country of Origin220/380/415V
ConditionNEW
Total Carbohydrate2-3 Years Cost
After-Sales Service ProvidedEngineers Available To Service Machinery Overseas, Engineers Available To Service Machinery Overseas
Power22KW
Packaging TypeTo customer design
UsageCHINA

Main Features
1.This type of machine adopts advanced technology, typical of good performance , reliable structure, easy operation, convenient maintenance, is widely used in mechanical processing department for medium and heavy black non-ferrous metal plane, inclined plane and the groove surface milling, etc..
2.It can use all kinds of standard cutter, and has large cutting torque and cutting depth.
3.The machine bed, table, bar are manufactured with high-quality cast iron, and have two quenching to eliminate the stress and deformation.
Model YJ-SK6030
Distance between two columns 3100mm
Working table size 6000×2500mm
Working table load 20000kg
T-Slot 9-28×220mm
Max cutting length X 6000mm
Max cutting width Y 3000mm
Vertical travel Z 1000mm
Spindle Taper BT50
Spindle speed 10-8000rpm
Spindle motor (servo) 30kw
X,Y,Z Fast-moving 20mmin
Max cutting feedrate 0.1-10mmin
Tool Max Diameter Φ160mm
Tool Max length 300mm
Tool Max weight 15kg
CNC system Siemens
Position accuracy ±0.03300mm
Repeat accuracy ±0.01500mm
Machine Weight 32Ton
