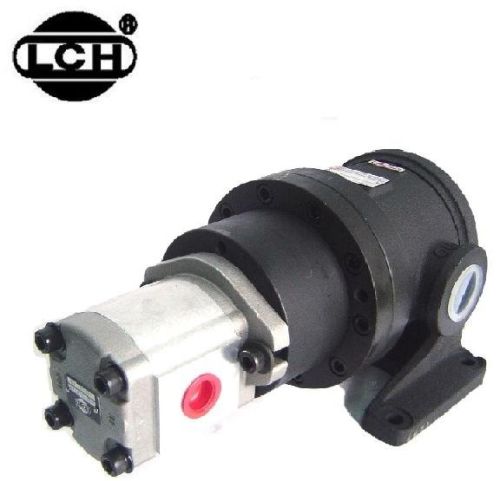

Fixed Displacement Vane Pumps, Brand Name : LCH

We offer Fixed Displacement Vane Pumps.
Model Number:50T Series
**Max. Pressure kgfcm2
50T-07:70
50T-12:70
50T-14:70
50T-17:70
50T-20:70
50T-23:70
50T-26:70
50T-30:70
50T-36:70
50T-39:70
50T-43:35
**Allowable Rotational Speed (r.p.m.)
*Max.
50T-07~50T-39: 1800r.p.m.
50T-43: 1200 r.p.m.
*Min.
50T-07: 1200 r.p.m.
50T-12~50T-43: 950r.p.m.
**Weight
For all Foot type: 10.5kg
For all Flange type: 9.5kg
150T series
**Max. Pressure kgfcm2
150T-48:70
150T-61:70
150T-75:70
150T-94:70
150T-116:70
**Allowable Rotational Speed (r.p.m.)
*Max.
150T-48~150T-94: 1800r.p.m.
150T-116: 1200r.p.m.
*Min.
All 150T series: 900r.p.m.
**Weight
For all Foot type: 25kg
For all Flange type:
