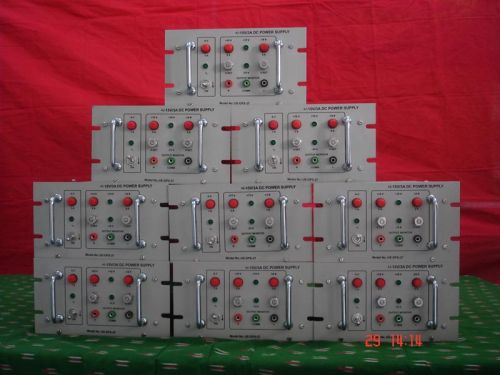

Fixed Output DC Power Supply, Feature : Long Functional Life

Located in Hyderabad, we have built a wealth of reputation for manufacturing and supplying the top of the line Fixed Output DC Power Supply across the country. The offered Fixed Output DC Power Supply is highly reliable, noise free, low maintenance, and easy on the pocket. As per the demands of clients, we make available the Fixed Output DC Power Supply in variety of specifications.

Specifications For Fixed Output Dc Power Supply:

• Input - 230V AC, +10% 50 Hz, Single Phase

• Output Voltage - O/P Voltage DC, +1V adjustable by potentiometer mounted on Front Panel with Lock Nut (VOLTAGE DEPENDS ON YOUR REQUIREMENT)

• Output Current - O/P Current. (CURRENT DEPENDS ON YOUR REQUIREMENT)

• Line Regulation - Better than 0.1% for a line change of 207V to 253V

• Load Regulations - Better than 0.1% from no load to full load and vice versa.

• Ripple - Less than 3mV (RMS) or 100mV peak to peak.

• Protction :

  • Unit is protected against input surges
  • Unit is protected against over loads and continuous short circuits
  • Input is protected by a fuse

• Indicators :

  • One Green LED for Input ON
  • One Green LED for Output ON
  • One Panel mounted Meter with a selector switch to read both voltage and current

• Front Panel Controls :

  • One DPDT switch to ON/OFF the unit.
  • One Potentiometer with Lock Nut to adjust the output voltage at required level

• Termination - Separate PIRI Terminal Block on Front Panel for Input(AC) and Output(DC) and for Remote sensing.
