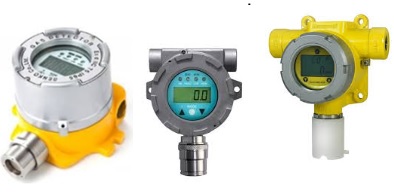

ILUX-GDF-1001 FIXED GAS MONITOR
 Method: Natural Diffusion
Working Voltage: DC24V±6V
Power Consumption: ≤3W
Operation Method: infrared remote control
Working Humidity: ≤95%RH（no dews）
Protection Grade: IP65
Â
Â
Description:ILUX-GDF-1001 series fixed gas detector. It adopts high-quality gas sensitive element and microcontroller technology. It has advantages of good repeatability, temperature & humidity performance, long life and easy to operate.
Â
The detector is widely used in industrial gas detection fields where may has dangerous gases such as petroleum and petrochemical’s oil refineries, chemical plants, metallurgy industries and power plant
Features:smart sensor module, easy for sensor replacement
audible and visual alarm
Method：natural diffusion
Working voltage：DC 24V±6V
Power consumption：≤3W
Accuracy：≤±3%LEL /≤±5%FS（toxic gas）
Operation method infrared remote control
Response time（t90）：flammable gas≤30s toxic gas≤60s
Working temperature：
-40℃～+70℃（flammable gas）
-20℃～+50℃（toxic gas/oxygen）
Working humidity：≤95%RH
Explosion proof level：Ex d Ⅱ
Protection degree：IP65
Output signal：4～20mA/RS485
Connecting thread：G3/4（FPT）
Cable：≥1.5 mm2×3 shielded cable
external diameter 6mm～9mm（4～20mA）/ 1.5 mm2×4（RS485）
Transmission distance：≤1000m
Sensor life：3 years for catalytic sensor, 2 years for electrochemical sensor.
