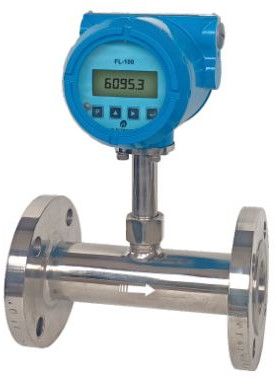

FL 100 Two Wire Turbine Flow Meter

FL-100 Turbine Flow TransmitterElectronet Series – Industrial Flow Measurement Solution   Features

• 2-Wire System

• Simple & Cost-Effective Construction

• Local LCD Display

• Suitable for Conductive & Non-Conductive Liquids

• Electronics Protection: Weatherproof IP65 / IP67

• Easy Maintenance

  Description

Electronet series FL-100 are 2-wire turbine flow transmitters designed for a wide range of industrial applications.
The flowing media drives a vaned rotor that rotates at a speed proportional to the flow rate. A pick-up coil senses the rotor’s motion and converts it into a pulsating electrical signal.

The frequency of this signal is directly proportional to the flow rate and is further converted into a standard 4–20 mA output signal.
The system also provides totalized flow and real-time flow rate via a local LCD display.

  Technical SpecificationsPerformance Characteristics

• Media: Liquids

• Line Size: 15 NB to 200 NB

• Electronics: Integral (Local) / Remote

• Viscosity: Up to 100 cP

• Display:

  • LCD, 4-Digit Flow Rate

  • 5-Digit Totalizer

  • Flow Rate & Totalized Flow via Toggle Key

• Remote Cable Length: Max. 15 meters

• Output: 4–20 mA DC

• Calibration Range: Factory Calibrated (As per requirement)

• Accuracy: < ±0.5% of F.S. + 5 mm/sec (Velocity range 0.3 m/s to 6 or 12 m/s)

• Linearity: ±0.5% of F.S.

• Repeatability: ±0.5% of F.S.

• Temperature Coefficient: ±0.01% per °C

• Pressure Drop: Approx. 0.28 kg/cm² at max flow

• Turn Down Ratio: 10:1

• Process Temperature: –20°C to 120°C

• Process Pressure: 0 to 10 kg/cm²

Material of Construction (MOC)

1. Bearings: Tungsten Carbide Sleeve / V-Jewel

2. Rotor: SS 410 / 17-4 PH

3. Shaft: Tungsten Carbide

4. Body / Support / Flange: Stainless Steel

  Additional Technical SpecificationsElectrical

• Cable Entry:

  • M20 × 1.5 (F)

  • ½" NPT (F)

  • Pluggable Connector

• Power Supply: 24V DC, Two-Wire Loop Powered

• Power Consumption: < 0.5 VA

• Response Time: < 100 mSec

• Electronic Protection:

  • Weatherproof: IP67

  • Flameproof: CMRI IIA/IIB Certified

Process Connections

1. ASA 150 RF Flanged (15 NB to 200 NB)

2. Threaded: 15 NB to 50 NB

3. SS Tri-Clover: 15 NB to 100 NB

Mounting

• In-Line (Horizontal / Vertical)

Ambient Conditions

• Temperature: –20°C to 75°C

• Humidity: 5% to 95% RH (Non-Condensing)

Certification

• CE Certified
