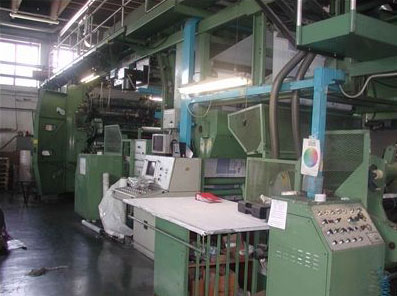

FL047 Used CI Flexo Printing Machine

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

The FL047 Used CI Flexo Printing Machine, we are making available, comes with a gear pitch of 5mm. The material is all plastic which is laminated. The machine is also equipped with motorized print station positioning with repeat preset, driven in feed roller with automatic web tension control and slitter in line helios banana roller. We are one of the prominent Importers and Exporters of FL047 Used CI Flexo Printing Machine from Italy.

View More Details

Send Enquiry

Product Details

Details

Manufacturer	UTECO
Model	AMBER 808
Year	1995
Number of colors	8
Gearless	No
Fast sleeve change	No
Computer supervision	No
Web width (mm)	1550
Print width (mm)	1500
Min print repeat (mm)	340
Max print repeat (mm)	850
Unwinder type	Turret automatic
Max reel diameter unwinder (mm)	1000
Rewinder type	Turret automatic
Max reel diameter renwinder (mm)	1000
Drying	2 zones 4 fans -4 mt tunnel- steam heat exchangers
Videocamera	included
Corona treatment	FERRARINI BENELLI suitable for metallized
Web guides	FIFE in and out
Vyscosity control	8 GRAFIKONTROL
Anilox	Ceramics anilox : 17 ( 1x 500, 2x300, 6x260, 2x200, 2x120, 1x110, 2x100, 1x80 L/cm),
Print Sleeves	32
Print cylinders	Cylinders : 136 8x320,330,340,360,390,410,440,470,490,520,540,560,580,590,610,650,690mm
Additional informations	Gear pitch 5mm , Material : all plastic films and laminated; Motorized print station positioning with repeat preset, preregister, motorized long. registers , Driven Infeed roller with automatic web tension control ; Slitter in line Helios Banana roller.
