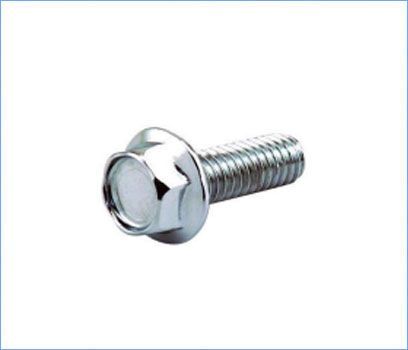

Steel Flange Bolt, Color : Metallic

Get Latest Price

MaterialSteel
Packaging TypeMetallic
Head StyleFlat Bearing Surface
Head ShapeCircular
Supply TypeManufacturer
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

SHIV OM FASTENERS

Sector 8, Navi Mumbai, Maharashtra

View Number

Member Since 9 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

MaterialSteel
Packaging TypeMetallic
Head ShapeCircular
Head StyleFlat Bearing Surface
Additional FeatureFlange For Better Grip
Tightening MethodWrench Or Socket
PackagingBulk

A flange bolt is a type of fastener that is used to connect two flanges or flanged components together. It has a circular head with a flat bearing surface, and a threaded shaft that extends from the head. The flange bolt is tightened using a wrench or socket, and the flange provides additional surface area for the wrench to grip, making it easier to apply torque. Flange bolts are commonly used in automotive, construction, and mechanical applications where flanged components need to be securely fastened together. They are available in a variety of sizes, materials, and finishes to suit different applications and requirements.

Flange Bolt As per Din 6921
DIAMETER (d)			5 x 0.80 P	6 x 1.00 P	8 x 1.25 P	10 x 1.50 P	12 x 1.75 P	14 x 2.00 P	16 x 2.00 P	20 x 2.50 P
ACROSS FLAT (s)		Min	7.78	9.78	12.73	14.73	15.73	17.73	20.67	26.67
ACROSS FLAT (s)		Max	8.00	10.00	13.00	15.00	16.00	18.00	21.00	27.00
ACROSS CORNER (e)		Min	8.71	10.95	14.26	16.50	17.62	19.86	23.15	29.87
ACROSS CORNER (e)		Min	8.71	10.95	14.26	16.50	17.62	19.86	23.15	29.87
WASHER OD (DC)		Max	11.80	14.20	18.00	22.30	26.60	30.50	35.00	43.00
WASHER OD (DC)		Max	11.80	14.20	18.00	22.30	26.60	30.50	35.00	43.00
HEAD THICKNESS (K)		Max	5.40	6.60	8.10	9.20	11.50	12.80	14.40	17.10
HEAD THICKNESS (K)		Max	5.40	6.60	8.10	9.20	11.50	12.80	14.40	17.10
Length	Min	Max
16	15.65	16.35	FBT05016	FBT06016	FBT08016
20	19.58	20.42	FBT05020	FBT06020	FBT08020	FBT10020
25	24.58	25.42	FBT05025	FBT06025	FBT08025	FBT10025	FBT12025	FBT14025	FBT16025	FBT20025
30	29.58	30.42	FBT05030	FBT06030	FBT08030	FBT10030	FBT12030	FBT14030	FBT16030	FBT20030
35	34.50	35.50	FBT05035	FBT06035	FBT08035	FBT10035	FBT12035	FBT14035	FBT16035	FBT20035
40	39.50	40.50	FBT05040	FBT06040	FBT08040	FBT10040	FBT12040	FBT14040	FBT16040	FBT20040
45	44.50	45.50	FBT05045	FBT06045	FBT08045	FBT10045	FBT12045	FBT14045	FBT16045	FBT20045
50	49.50	50.50	FBT05050	FBT06050	FBT08050	FBT10050	FBT12050	FBT14050	FBT16050	FBT20050
55	54.40	55.60	FBT05055	FBT06055	FBT08055	FBT10055	FBT12055	FBT14055	FBT16055	FBT20055
60	59.40	60.60	FBT05060	FBT06060	FBT08060	FBT10060	FBT12060	FBT14060	FBT16060	FBT20060
65	64.40	65.60	FBT05065	FBT06065	FBT08065	FBT10065	FBT12065	FBT14065	FBT16065	FBT20065
70	69.40	70.60	FBT05070	FBT06070	FBT08070	FBT10070	FBT12070	FBT14070	FBT16070	FBT20070
75	74.40	75.60	FBT05075	FBT06075	FBT08075	FBT10075	FBT12075	FBT14075	FBT16075	FBT20075
80	79.40	80.60	FBT05080	FBT06080	FBT08080	FBT10080	FBT12080	FBT14080	FBT16080	FBT20080
85	84.40	85.60	FBT05085	FBT06085	FBT08085	FBT10085	FBT12085	FBT14085	FBT16085	FBT20085
90	89.30	90.70	FBT05090	FBT06090	FBT08090	FBT10090	FBT12090	FBT14090	FBT16090	FBT20090
95	94.30	95.70	FBT05095	FBT06095	FBT08095	FBT10095	FBT12095	FBT14095	FBT16095	FBT20095
100	99.30	100.70	FBT05100	FBT06100	FBT08100	FBT10100	FBT12100	FBT14100	FBT16100	FBT20100
105	104.30	105.70	FBT05105	FBT06105	FBT08105	FBT10105	FBT12105	FBT14105	FBT16105	FBT20105
110	109.30	110.70	FBT05110	FBT06110	FBT08110	FBT10110	FBT12110	FBT14110	FBT16110	FBT20110
120	119.30	120.70	FBT05120	FBT06120	FBT08120	FBT10120	FBT12120	FBT14120	FBT16120	FBT20120
130	129.20	130.80	FBT05130	FBT06130	FBT08130	FBT10130	FBT12130	FBT14130	FBT16130	FBT20130
140	139.20	140.80	FBT05140	FBT06140	FBT08140	FBT10140	FBT12140	FBT14140	FBT16140	FBT20140
150	149.20	150.80	FBT05150	FBT06150	FBT08150	FBT10150	FBT12150	FBT14150	FBT16150	FBT20150
