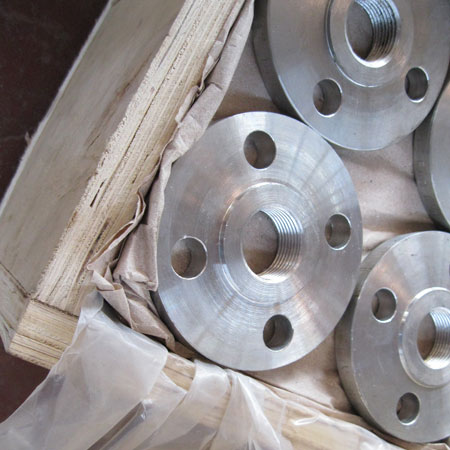

Flange

Get Latest Price

inspectionfactory in-house self check or Third Party inspection
materialCarbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8
standardANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
size1/2-78 inch (DN15-DN2000)
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Beijing Haohong Pipe Fitting Imp&exp Trade Co. ltd

China, beijing

View Number

Member Since 11 Years
Nature of Business Supplier

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

materialCarbon steel: A105,SS400,SF440 RST37.2,S235JRG2,P250GH,C22.8
size1/2-78 inch (DN15-DN2000)
typePlate ,Slip-on, Welding Neck. Thread, Socket weld, Blind
surface treatmentAnti-rust Oil, Transparent/Yellow/Black Anti-rust Paint ,Zinc,
standardANSI,JIS,DIN,BS4504,SABS1123,EN1092-1, UNI,AS2129,GOST-12820
inspectionfactory in-house self check or Third Party inspection

Flanges of welding neck, socket welding, threaded, blind, slip on, lap joint are in accordance with ansi b 16.5 from 12" to 24" and classes 150 to 2500 (complete range).
flanges from 26" to 48" and classes 150 to 900 lbs are in accordance with mss sp 44 standard.
flanges with long welding neck are from classes 150 to 2500 lbs and sizes from 12" to 24".
orifice flanges from 1" to 24" and from 300 to 2500 lbs are in accordance with ansi b 16.36.
blind, slip on, welding neck flanges are from 6 bar to 40 bar in accordance with din.
flanges from 12" to 24" and up to 450 lbs are in accordance with bs10 table d & table e, bs table f & table h, bs table j & table k.
flanges from 2kg to 210 kg are in accordance with jis.
flanges according to api 605asme b16.47.
depending on special purposes, flanges can be manufactured in different shapes and sizes
