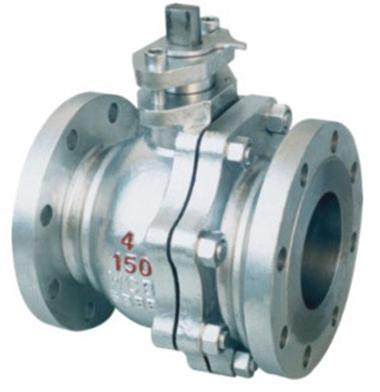

Contact SupplierWe are offering flange floating ball valve. Name:flange floating ball valve
classification:ball valve
model:q41f
nominal diameter: dn15 to 250mm or 1/2 to 10 inches
class: 150, 300 and 600lb
applicable temperature: -196 to 350°c
applicable mediums: water, steam, oil, nature gas, acid and alkali
materials: stainless, carbon steel and 316ss
medium:steam, water, oil
drive manner: manual, pneumatic, electric and hydramatic
packing: plywood as export standard or customized
main accessory and material:
1.body:a216-wcb
2.seal ring:ptfe
3.ball:ss304
4.nut:a194-2h
5.bolt:a193-b7
6.left body:a216-wcb
7.gasket:flexible graphite +stainless steel
8.packing:ptfe
9.gland flange:a216-wcb
10.orientation piece:a105
11.chelate ring:aisi 1066
12.handle:a47-667 gr.32510
13.stem:a276-410
14.bolt:a193-b7
15.gasket:ptfe
technical criterion:
1.design standard: api6d/ansi b16.34
2.face to face:api6d/ansi b16.10
3.flange:ansi b16.5 b16.47
4.test and inspection:api6d/api598
