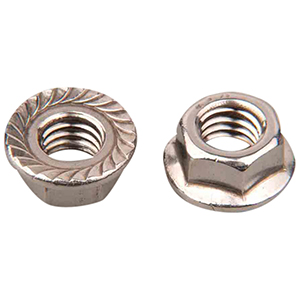

A flange nut is a nut that has a wide flange at one end that acts as an integrated, non-spinning washer. This serves to distribute the pressure of the nut over the part being secured, reducing the chance of damage to the part and making it less likely to loosen as a result of an uneven fastening surface.
SJS is one of the largest manufacturer of Flange Nut established in UAE since 1992. We follow the manufacturing standard of fasteners such as ASTM AISI BS EN ISO DIN & JIS. We are always striving to diversify our Flange Nut manufacturing capabilities to be able to satisfy the needs of our customers all around the globe regarding Flange Nut.

DIA	F		H		FLANGE
DIA	MAX	MIN	MAX	MIN	FLANGE
M3	5.50	5.30	4.00	3.40	8.00
M4	7.00	6.78	4.65	4.20	10.00
M5	8.00	7.78	5.00	4.70	11.80
M6	10.00	9.78	6.00	5.70	14.20
M8	13.00	12.73	8.00	7.60	17.90
M10	15.00	14.73	10.00	9.60	21.80
M12	18.00	17.73	12.00	11.60	26.00
M16	24.00	23.67	16.00	15.30	34.50
M20	30.00	29.67	20.00	18.90	42.80
