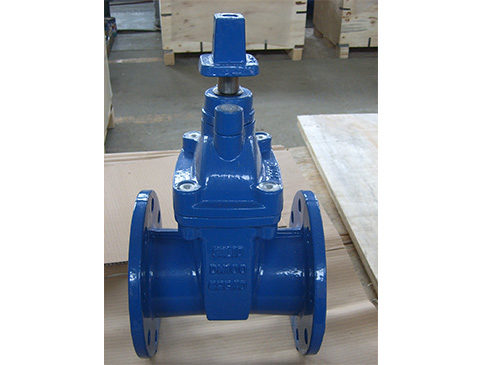

Flanged End Gate Valve

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Flanged End Gate Valve Gate Valve Cast Iron ValveÂ Standard:Â DIN 3352-F4, DIN 3352-F5, BS5163, AWWA C509ï¼�AWWA C515 Flange drilling is according to DIN2501, BS4504 and ANSI B16.1 Working....

View More Details

Send Enquiry

Company Information

SHANXI SOLID INDUSTRIAL CO LTD

Taiyuan

View Number

Member Since 8 Years
Nature of Business Supplier
Year of Establishment 2006

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Flanged End Gate Valve
Gate Valve
Cast Iron ValveÂ
Standard:Â DIN 3352-F4, DIN 3352-F5, BS5163, AWWA C509ï¼�AWWA C515
Flange drilling is according to DIN2501, BS4504 and ANSI B16.1
Working pressure:Â 10bar16bar25bar
Testing pressure:
Shell:Â 15bar24bar37.5bar
Seal:Â 11bar17.6bar27.5bar
Type:Â non rising stem rising stem
Material:
Body:Â Ductile iron GGG4050 or Cast IronGG25
Wedge:Â Ductile iron GGG4050+EPDMNBR or metal seated
Stem:Â stainless steel 2Cr13 , SS304,SS316
Bolt and Nuts:Â Carbon Steel with zinc plated or SS304,316
Coating:Â Internal and external with fusion bonded epoxy coating min250Î¼m
