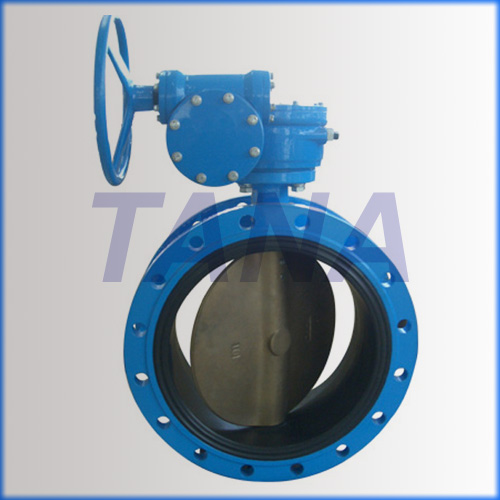

Flanged Rubber Seat Butterfly Valve, Brand Name : TANA or OEM

We are offering double .
quick details
standard or nonstandard:standard
structure:butterfly
pressure:medium pressure
power:manual
material:casting
temperature of media:normal temperature
media:water, oil, gas etc.
port size:2 ~48 inch
place of origin:zhejiang, china (mainland)
model number:d343x
brand name:tana or oem
end connection:rf flange
standard:din3354,api609
packaging & delivery
packaging details: plywood case
delivery detail: as soon as possible
specifications
double flanged rubber seat butterfly valvesize :2"~48"pressure: class150-300lbmaterial: cast iron, ductile iron
double flanged rubber seat butterfly valve
design features
concentric structure, bi-directional seal
non-peeling seat-to-body structure
spherical design for plate and seats
non-pin connection
low valve operating torque
flow curve tending to straight line
technical specification
size 2"-48" or dn50-dn1200
pressure: class150lb-300lb or pn16-pn25
material: cast iron, ductile iron
design & manufacture std.: api609,mss sp-67,mss sp-68,din3354
end connection std.: ansi b16.5,asme b16.47,en1092
face to face std.: api609,mss sp-68,en558
test standard:api598,en12266.1
structure type: center line pattern, double eccentric pattern
operated way:hand wheel,worm gear,pneumatic,electric actuator
tana will provide you satisfying price, quality and service.
welcome to visit or email us your inquiry.
provide co,fa,fb,fe,ff,fn,fp,fx etc. Certificates as per customer’s requirement.
