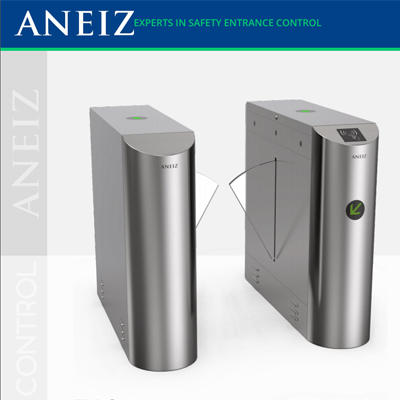

Flap Turnstile Gate

Aneiz F10 flap turnstile-Support OEM and ODM. Support third-party biometric devices, such as fingerprint scanner, face recognition camera. RFID card reader, QR code scanner.

Aneiz F10 flap turnstile is a high performance pedestrian control turnstile. Usually used in high pedestrian traffic flow in both directions to control pedestrian entry or exit in restricted areas

304 Stainless steel material, durable, high quality, for long lasting use.

The F10 features designed with standard relay signal, which can integrate easily to any kind of access control and fire systems through I/O (dry contact).

In case of emergency, when power goes off both directions are free.

Passing Direction: Single directional / Bi-directional.

FEATURES

Aneiz F10 flap turnstile -The panels of the flap turnstile extend from a pair of optical revolving door cabinets, forming a pedestrian barrier in the middle of the two cabinets. Flap turnstile is an aesthetically pleasing security and access control solution.

Aneiz F10 flap turnstile -The arms will automatically retract during power failure. Flap turnstile also can be triggered to permanently open during emergency to facilitate fast evacuation. This is complying with fire safety requirements.

Aneiz F10 flap turnstile -Altogether, there are 5 million cycles, 304 Stainless steel material and brushless DC motor, which guarantee greater durability and longer equipment life.

Aneiz F10 flap turnstile -The turnstile designed with consolidated and more durable mechanism, will not break even someone collide it, anti-collision and anti-kick function.

Aneiz F10 flap turnstile -The flaps will close automatically if there is no pedestrian passing or passenger delay to entry.

IR sensors detect unauthorized or abnormal access. Alarm buzzer function will be triggered when the user is passing thru without authorization, tail gaiting, illegal intrusion or incorrect direction.

Aneiz F10 flap turnstile -Multiple Operating Modes-optional

IC/ID card, key fob, QR/bar code, face / fingerprint / finger vein biometric recognition, push button, ESD, wireless remote control, insert coins / card / wristband, digit counter...

Aneiz F10 flap turnstile TECHINCAL SPECIFICATION

Material  304 Grade Stainless Steel

Cabinet Dimension  1200(L) X 300(W) X 980(H)mm

Arm Material   Plexiglas-transparency

Passage Width         550mm standard lane

Throughput      40 to 45 people per minute

Response Time         ≤0.3S

Net Weight       65kg/pcs single core

85kg/pcs double core

Directional Mode     Uni-directional or bio-directional

IR Sensor3 pairs (standard)

Power Supply   AC220V/110V, 50/60Hz

Power Voltage24V DC

Power Consumption         40W

MCBF       5 million

Operating Temperature  -20 °C - 75 °C

Operating Environment   Indoor or outdoor (need with shelter)

Relative Humidity    ≤ 95%

LED IndicatorsRed cross means gate open,

Green arrow means gate closed

Warranty18 Months
