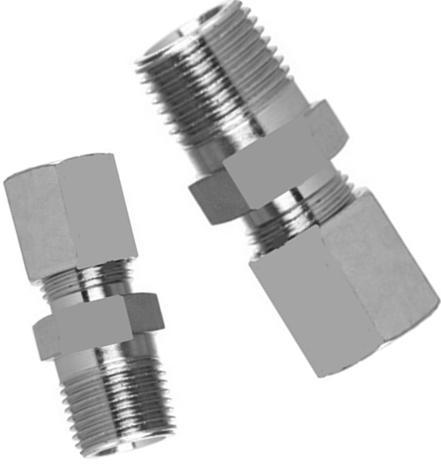

Flareless Tube Fittings

We offer flareless tube fittings.
introduction
pioneer flareless tube fitting provide secure, tough, and reliable tube connection that provides exceptional leak-tight application. These flareless fittings are also known as jis bite type tube fittings or sae flareless fitting
variety
flareless tube fitting as per din 2353 are available in wide array of configurations are available such as straight connectors, elbows, union, tees, and crosses , adapters and various customized machined components of various styles , shapes and sizes. If you have special drawings flareless tube fitting send us to pionlace@vsnl.com
how does pioneer flareless tube fitting work?
pioneer flareless tube fitting consists of three-piece machined components (nut, ferrule, and body) .this system works by forcing the ferrule to cut into the tubing wall to create a leak tight seal. The ferrule is harder than the tubing to form the bite . Thus resulting in a very effective leak proof joint, full flow connection in process tubing .it is used in virtually every application that uses fluid power for motion control & automation.
materials available
flareless tube fitting or jis bite type tube fittings are available in stainless steel, brass, steel, monel, high duty bronze, hastelloyc, incoloy, inconel 600.
manufacturing process
flareless tube fitting are manufactured from cold drawn bar stocks and all angular fittings from neat forgings. Our focus on forged construction results in close grain structure and also gives extremely high reliability to our hydraulic fittings .the ferrule is slightly discolored because it has been heat-treated to give extra hardness for biting. The finishing on flareless tube fitting nuts is a dark graphite color. The fitting nut is designed to reduce torque and prevent galling.
application
flareless tube fitting is used in almost all application that involve fluid power for instrumentation and process control. However it is an excellent fitting system for higher vibration hydraulic systems where tube protection is critical pioneer flareless fitting has been specifically designed for use on instrumentation, process and control systems, together with equipment employed in chemical, chromatography, petroleum, power generation and pulp & paper plants.
advantages of pioneer flareless tube fitting?
variety of styles , shapes and sizes. Low torque operation. Very effective seal between the fittings and the flared tube good vibration resistance.
