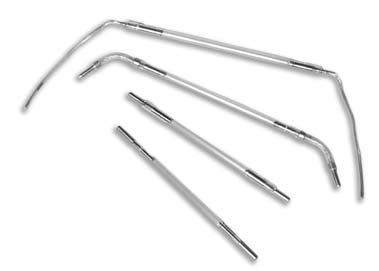

Flashlamps

DC Arclamps are operated in a continuous wave (CW) mode and discharge a constant current in the 10-40 Amp range between 100-250 Volts. The continuous light radiated induces constant gain in the Nd:YAG rod, generating a continuous laser beam. Krypton gas is almost always selected for CW applications because it is more efficient than Xenon at these power levels; in fact, these lamps are universally known as Krypton arclamps. For increased efficiency, they are filled to very high pressures, typically 5-10 atmospheres. Violent explosions can result from mishandling, so safety glasses should be worn during handling and installation. These high pressures make Krypton arclamps difficult to start because of their high impedance. Therefore, fairly complex starting circuitry must be employed: first, a short duration (approximately one microsecond) high voltage (20-30kv) trigger pulse is applied to the lamp, which causes an initial ionization of the gas. Next, a boost circuit drives a low current through the lamp at moderate voltage for a few milliseconds after which the main power supply can take over and run the lamp at its normal operating current and voltage (typically 20 amps at 150 Volts).
