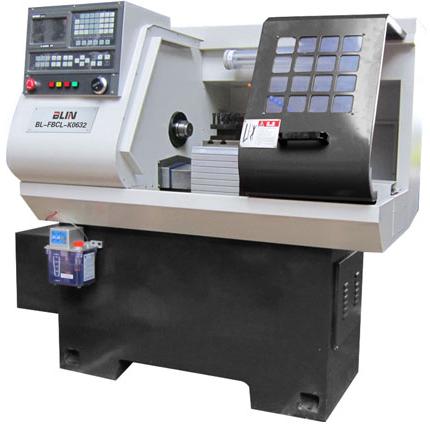

Flat Bed CNC Lathe ( Bl-fbcl-k0620/ 0632)

Max. Swing Dia. over BedΦ300
Max. Swing Dia. Over SlideΦ130(for 4 Station Tool Turret); Φ80(for Gang Tool)
Supply TypeManufacturer
Preferred Buyer Location All over the world

Features: middle set ball screw full closed shield for guide way machining class: precise class, precision: 0.01mm, min. Setting unit: 0.001mm integral casted bed ....

View More Details

Send Enquiry

Product Details

Features:
middle set ball screw
full closed shield for guide way
machining class: precise class, precision: 0.01mm, min. Setting unit: 0.001mm
integral casted bed
guideway forged by cast iron
guideway precisely ground by special guide way grinding machine
ultrasonic frequency quenched guide way
strengthened spindle(total 4pcs bearings)
x.z axes feeding motor connect with ball screw directly
standard configuration:
* gsk928tea cnc system
* spindle frequency conversion,3kw motor, 3.7kw inverter
* x. Z axes feeding motor and driver(gsk servo 4/4n.m)
* pneumatic collet device
* gang tool carriage device
* automatic lubrication system
* coolant system
* working lamp
* standard accessories
standard accessories:
sa1. Machine balance pads 1set
sa2. Collet 1pc
sa3. Gang tool holders 3pcs
sa4. Regular using wrenches box 1set
sa5. Full set english user manual.
optional configuration and accessories:
oa1. Gsk980tdb cnc system.
oa2. Manual chuck/collet, hydraulic collet/chuck.
oa3. 4 station vertical type electric tool turret.
oa4.lower configuration
