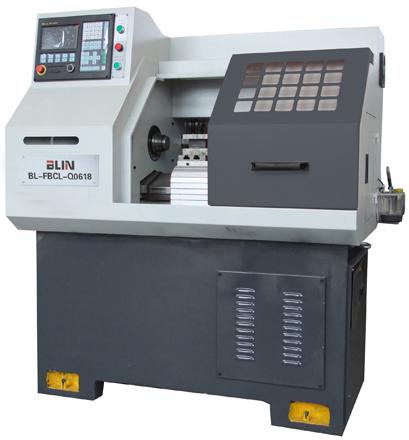

Flat Bed CNC Lathe-bl-fbcl-q0618/0620

We are offering flat bed cnc lathe-bl-fbcl-q0618/0620.
features:
1. Machine produced strictly according to china national, cqc and ce safety standard.
2. Machine cover use plastic spraying technolgy treatment.
3. All buttons on panel imported from taiwan.
4. Has two coolant tanks, chips can't enter coolant liquid pump, can protect coolant pump.
5. Spindle box and base structure is very stable
6. Strap connected with spindle and spindle motor use special type high speed strap.
7. Encoder use china no. 1 brand.
8. Spindle bearings total have 4pcs(2pcs+2pcs)
9. Spindle and x. Z axes bearing use china no. 1 -hrb brand's best "bc" series.
10. Spindle lipid use america shell brand
11. Standard pnumatic collet device use china top quality high speed rotary air cylinder(has two pistons)
13. All pneumatic parts use taiwan airtac brand.
14. Full closed shield for guide way.
15. X. Z axes feeding motor connected with ball screw directly (not by strap)
16. Connection device between x. Z axes ball screw and feeding motor use no. 1 brand in china, spring sheet imported from japan.
17. X. Z axes ball screw set at middle position
18. Guideway is wide.
19. England eura brand inveter
20. Contactor made by china no. 1 brand.
31. Drivers set in different cabinet with inverter&transformer.
standard configuration:
gsk928tea cnc system with mpg
gsk brand servo x.z axes feeding motor& driver
spindle frequency conversion
pneumatic collet device(collet 1pc)
(high speed hollow rotary air cylinder)
gang tool carriage& gang tool holder(3pcs)
automatic lubrication system
coolant system
working lamp
full set ce standard safety protection device
standard accessories
standard accessories:
sa1. Leveling bolts 1set
sa2. Regular using wrench 1set
sa3. Full set english user manual
optional configuration/accessories:
oa1. Gsk980tdb cnc system
oa2. Manual/hydraulic collet, manual/pneumatic/hydraulic chuck
oa3. Lns automatical bar feeder
