Flat Bed Multi Plate Pressure Filters

Dirty fluid is fed under pressure in to inlet manifold. It is distributed equally in 4 different plates. Filter papers clamped & supported between plates separate the dirt & form a layer (cake). This effects finer filtration. The same filter with pre-coating can add further to fineness of filtration.

Applications :
Suitable as centralized fine coolant filtration for finish grinding, filtration of high viscosity grinding fluids & filtration of honing oil with pre-coat arrangement.

Features :

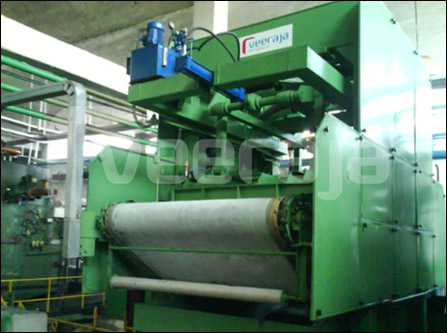

• Very large filtration area is accommodated relatively small dimensions. The unit shown is having 10 m2 filtration area.
• Totally automatic pneumatically actuated operation.
• Dirt is purged with compressed air to recover fluid.
• Low initial & operational costs.
