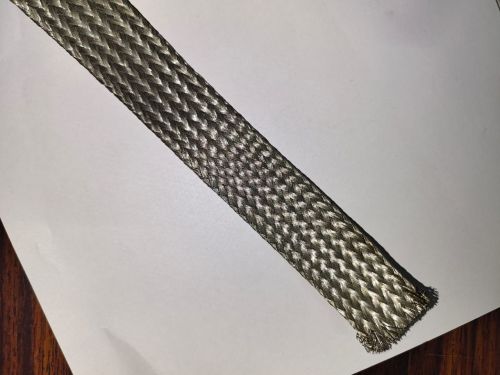

Flat Copper Braid 0.51 Mm To 3 Mm

Get Latest Price

MOQ50 Meter
MaterialBare Copper / Tinned Copper
Packaging TypeRoll, Coils,Cut Lengths,Or Custom Packs
Thickness1 Mm To 10 Mm
Wire Diameter0.51 Mm To 3 Mm
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Paras Flexicon Pvt. Ltd.

Ramanagara, Karnataka

4.3/5

(15)

View Number

Member Since 11 Years
Nature of Business Manufacturer
GST No. 29AAACP8228L1ZY

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Thickness1 Mm To 10 Mm
MaterialBare Copper / Tinned Copper
Packaging TypeRoll, Coils,Cut Lengths,Or Custom Packs
Country of OriginIndia
Wire Diameter0.51 Mm To 3 Mm
StrandingFine copper wires (typically 0.07–0.20 mm dia each)
ResistanceLow electrical resistance
Current CapacityVaries as per cross-sectional area
Width Range5 mm to 100 mm (custom on request)
Finish OptionsBare / Electro Tinned
Operating Temperature-20°c to +120°c (approx.)

Flat Copper Braid is a flexible, tinned or bare copper conductor made by weaving multiple fine copper wires into a flat, ribbon-like structure. It is widely used for electrical grounding, bonding, shielding, and as a flexible connector in electrical systems. Due to its flat profile, it offers excellent current-carrying capacity with space efficiency.

Key Features:

High flexibility and vibration resistance

Excellent conductivity for electrical applications

Easy to solder and terminate

Corrosion-resistant in tinned variant

Ideal for compact electrical assemblies

Applications:

Electrical grounding and bonding

Busbar connections

Shielding in control panels and switchgear

Battery connections and inverter systems

Flexible jumpers in machinery and railways

Additional Information

Sl NO	Paras Part Number	Nominal Flat Width in inches	Nominal Flat Width in mm	Nominal Thickness in inches	Nominal Thickness in mm	AWG of Individual Strands	No. of Carriers	No. of Wires per Carrier	Total No. of Wires	Ampere	Approx. Shipping Weight Kg/Km
1	6010230481909	0.906	23	0.061	1.55	36	48	19	912	89	154.15
2	601024240309	0.125	3.18	0.02	0.508	36	24	3	72	16	12.17
2	601026240409	0.156	3.96	0.031	0.7874	36	24	4	96	19	16.23
3	601028240509	0.187	4.75	0.02	0.508	36	24	5	120	25	20.28
4	601029240709	0.25	6.35	0.03	0.762	36	24	7	168	32	28.4
5	601029241009	0.25	6.35	0.046	1.1684	36	24	10	240	40	40.57
6	6010211241309	0.281	7.14	0.046	1.1684	36	24	13	312	46	52.74
7	6010213480609	0.375	9.53	0.03	0.762	36	48	6	288	40	48.68
8	6010213240509	0.375	9.53	0.045	1.143	30	24	5	120	60	20.28
9	6010222480809	0.625	15.88	0.03	0.762	36	48	8	384	53	64.91
10	6010222481109	0.625	15.88	0.046	1.1684	36	48	11	528	62	89.25
11	6010219480809	0.5	12.7	0.03	0.762	36	48	8	384	53	64.91
12	60102129481809	0.75	19.05	0.04	1.016	36	48	18	864	88	146.04
13	6010232481809	1	25.4	0.045	1.143	36	48	18	864	85	146.04
14	6010227481909	0.812	20.62	0.045	1.143	36	48	19	912	93	154.15
15	6010229482209	0.875	22.23	0.05	1.27	36	48	22	1056	105	178.49
16	60102129246709	0.75	19.05	0.04	1.016	36	24	67	1608	125	271.8
17	6010251488409	1.625	41.28	0.08	2.032	36	48	84	4032	230	681.52
18	60102128241017	0.5	12.7	0.093	2.3622	30	24	10	240	90	157.2
19	6010222241517	0.625	15.88	0.093	2.3622	30	24	15	360	120	235.79
20	60102129242017	0.75	19.05	0.11	2.794	30	24	20	480	145	314.39
21	6010229242417	0.875	22.23	0.12	3.048	30	24	24	576	165	377.27
22	6010231242617	0.937	23.8	0.13	3.302	30	24	26	624	170	408.71
23	6010231242617	0.937	23.8	0.13	3.302	30	24	27	648	175	424.43
24	6010231242717	1	25.4	0.14	3.556	30	24	32	768	195	503.03
25	60102129480517	0.75	19.05	0.05	1.27	30	48	5	240	93	157.2
26	6010243480717	1.375	34.93	0.05	1.27	30	48	7	336	100	220.07
27	6010232480817	1	25.4	0.07	1.778	30	48	8	384	120	251.51
28	6010241481017	1.25	31.75	0.08	2.032	30	48	10	480	145	314.39
29	6010247481117	1.5	38.1	0.06	1.524	30	48	11	528	145	345.83
30	6010229481217	0.875	22.23	0.09	2.286	30	48	12	576	150	377.27
31	6010244481417	1.375	34.93	0.09	2.286	30	48	14	672	165	440.15
32	6010247481817	1.5	38.1	0.1	2.54	30	48	16	768	180	503.03
33	6010251481817	1.625	41.28	0.11	2.794	30	48	18	864	200	565.91
34	6010244482217	1.375	34.93	0.12	3.048	30	48	22	1056	235	691.66
35	6010254482617	1.75	44.45	0.13	3.302	30	48	26	1248	250	817.42
36	6010259482817	2	50.8	0.13	3.302	30	48	28	1344	255	880.3
37	6010259483217	2	50.8	0.14	3.556	30	48	32	1536	290	1006.06
38	6010259483517	2	50.8	0.15	3.81	30	48	35	1680	320	1100.37
39	6010269484417	2.375	60.33	0.175	4.445	30	48	44	2112	370	1383.33
40	6010286484717	3	76.2	0.19	4.826	30	48	47	2256	390	1477.64
41	601027248525217	2.5	63.5	0.19	4.826	30	48	52	2496	410	1634.84
