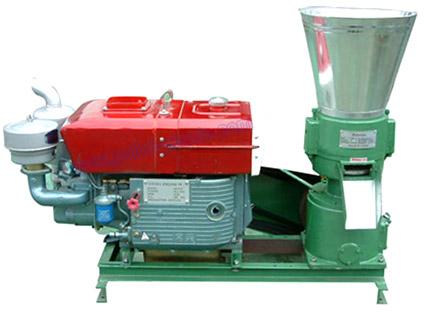

Flat Die Pellet Mill With Diesel Engine

We are offering flat die pellet mill with diesel engine. Application and features
1. It is widely used in processing the feed for rabbits, chicken, sheep, fish, shrimp and so on.
2. Especially applicable to the owners of feed-process factory and farm-holders.
3. Various biomass materials, like sawdust, sunflower stalk, forestry wastes, wood chips, and many other wastes can be processed by it.
4. Diesel engine flat die pellet mill is of high output capacity, low energy consumption and easy operation
technology data
model capacity for wood pellets capacity for feed pellets power (hp) diameter of mould
whsd-120d 30-50kg/h 50-80kg/h 8hp 120mm
whsd-150d 80-100 kg/h 100-150kg/h 8hp 120mm
whsd-200d 100-150 kg/h 200-250kg/h 15hp 200mm
whsd-230d 150-180 kg/h 250-300kg/h 22hp 230mm
whsd-260d 180-230 kg/h 300-400kg/h 30hp 260mm
whsd-300d 250-300 kg/h 400-500kg/h 55hp 300mm
whsd-360d 300-400kg/h 500-600kg/h 55hp 360mm
whsd-400d 400-450kg/h 600-700kg/h 55hp 400mm
size range of making wood pellets :6mm, 8mm, 10mmsize range of making feed pellets :2.5mm, 3mm, 4mm, 6mm, 8mmquality guarantee: 2 years guarantee for main body.
