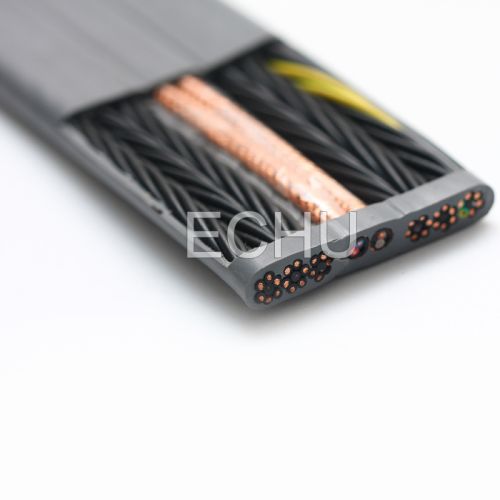

Flat Flexible Cables For Elevator

we are offering flat flexible cables for elevator.
approvals: ccc & ce approval
detailed product description
electrical properties:
related voltage u0/u:
0.75mm2: 300/500 u0 0.75~95.0 mm2: 450/750 u0
the number of cores: 4---24 cores
mechanical properties:
free suspension length: max.45m
traveling height: max.80m
running speed:4m/s
acceleration:0.8m/s2
operating temperature: 0~70°c(for special use:-30~70°c)
loop diameter: natural loop (approx. 250~350mm)
chemical properties:
weather resistance: good
conductor resistance at 20°c: good
insulated resistance at 70°c: medium
acid resistance at 20°c: medium
for specific environmental conditions please refer to manufacturer.
colour code: in accordance with 227iec71f (tvvb)
core: black with white numbered, 1gnye
outer sheath: grey or black
application: elevator suspension cable for internal and panoramic elevators
approvals: ccc & ce approval.
