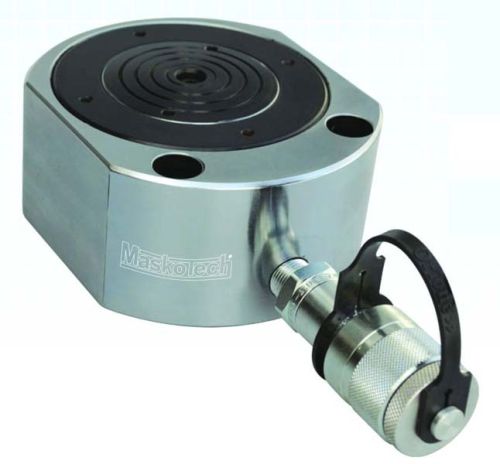

From Rajkot, Gujarat, we are counted amid the sought-after Manufacturers and Suppliers of the Flat Jacks Plain Ram across the country. By fully fabricating the Flat Jacks Plain Ram from the premium-grade material, we strengthen their corrosion resistant and load bearing properties. Furthermore, they are offered in plethora of technical specifications, as required by the clients, at rock-bottom prices.
Features / Application :
Caution : Provided a level and solid support for entire jack base area & saddle top since the ram guide length is small.
Model MT | Mounting Holes Location (mm) | ||
|---|---|---|---|
F | G | Thru Hole H | |
RSMS 5-8 | 28 | 25 | 5.5 |
RSMS 10-12 | 36 | 35 | 7 |
RSMS 20-12 | 50 | 40 | 8.5 |
RSMS 30-12 | 55 | 45 | 10.5 |
RSMS 50-16 | 75 | 55 | 11 |
RSMS 75-16 | 85 | 70 | 13 |
RSMS 100-16 | 90 | 80 | 13 |
RSMS 150-16 | 110 | 95 | 13 |
RSMS 200-16 | 130 | 105 | 171 |
Capacity | stroke | Model | Effective Area | Oil Cap. | Closed Height | Cylinder OD. | Bore Dia. | Ram Dia. | Saddle Dia. | Weight (Approx) |
|---|---|---|---|---|---|---|---|---|---|---|
Tons (kN) | (mm) | MT | cm. sq. | (cc) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | (kg) |
5(56) | 8 | RSMS 5-8 | 8 | 6 | 35 | 60 | 32 | 20 | 45 | 0.6 |
10(111) | 12 | RSMS 10-12 | 15.9 | 19 | 45 | 80 | 45 | 35 | 60 | 1.3 |
20(218) | 12 | RSMS 20-12 | 31.2 | 37 | 55 | 100 | 63 | 50 | 80 | 2.6 |
30(309) | 12 | RSMS 30-12 | 44.2 | 53 | 60 | 115 | 75 | 60 | 95 | 3.8 |
50(550) | 16 | RSMS 50-16 | 78.5 | 126 | 65 | 140 | 100 | 70 | 120 | 6.2 |
75(792) | 16 | RSMS 75-16 | 113.1 | 180 | 80 | 175 | 120 | 85 | 145 | 11.8 |
100(1077) | 16 | RSMS 100-16 | 153.9 | 247 | 85 | 190 | 140 | 100 | 165 | 15.1 |
150(1589) | 16 | RSMS 150-16 | 227 | 363 | 100 | 230 | 170 | 120 | 205 | 27 |
200(1985) | 16 | RSMS 200-16 | 283.5 | 454 | 115 | 265 | 190 | 140 | 230 | 40.7 |
