Flat Knitting Machines

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

Kauo Heng manufacture a large comprehensive range of flat bed knitting machine for the production of jerseys. The Kauo Heng KH-300 is offered in several configurations :• From a compact 3....

View More Details

Send Enquiry

Company Information

Narinder International

Sundar Nagar, Ludhiana, Punjab

View Number

Member Since 15 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

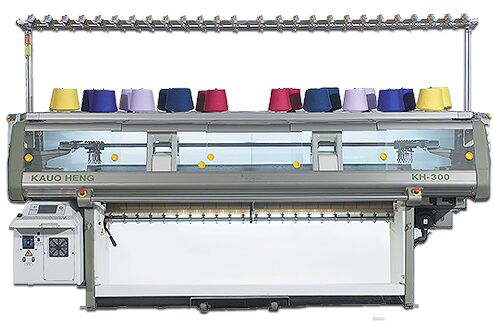

Kauo Heng manufacture a large comprehensive range of flat bed knitting machine for the production of jerseys.

The Kauo Heng KH-300 is offered in several configurations :
• From a compact 3 systems one carriage knitting machine
• To a 2 single system carriages knitting machine
• From 2.5 gauge to 14 gauge
• From 60 inches bed to 100 inches bed

Whatever model you choose, the Kauo Heng KH-300 allows you to knit and shape plain, stripes, full jacquard and intarsia designs
Kauo Heng have developed their own design software for the KH-300.
We recommend to use an AVR with this machine (Auto Voltage Regulator)

Narinder International offer a full support for this machine, from installation, training, repair and after sale service.

Computer control with LCD display, data direct input easy to key in programs, easy to operate, read and obtain information as to the performance of machine.
LCD displays the number of pieces to be knitted and how many were already knitted. All the information is very clearly displayed on LCD panel.

GAUGE	3G, 3.5G, 4G	5G, 7G, 10G, 12G, 14G, 16G
KNITTING WIDTH	46″ (117cm), 80″ (203cm)	50″ (127cm) , 80″ (203cm), 100″ (254cm)
CAM SYSTEM	Single System, Twin Carriage.	50″ : Double System 80″ : Single System, Twin Carriage. 100″ : Single System, Twin Carriage.
	Knitting System Three-Way Technique And Transfer With Split Stitch Function.
KNITTING SPEED	Max. 1.2 M/Sec. Knitting Speed Varies According To Gauge, Yarn And Knitting Conditions.
YARN CARRIERS	12 Yarn Carriers On 3 Double Rails	12 Yarn Carriers On 3 Rails 16 Yarn Carriers On 4 Rails
NEEDLE SELECTION	Full Jacquard Selection Via Special Solenoids.
TRANSFER	Simultaneous Transfer, Front Or Back, Independent Of Carriage Direction Split Knitting.
NEEDLE BED	Replaceable Segment Needle Bed.
SINKER SYSTEM	Moveable Sinker Equipment.
STITCH DENSITY	30 Levels Independent Selection, Electronic Control With Stepping Motor 00-200 Steps.
RACKING	Racked By Servo Motor And High Precision Ball Screw System. Racking Also Available 1/2 Pitch From Any Position.
FABRIC TAKE DOWN	Main Roller / Sub Roller : 32 Levels Changeable Speed, Automatically Adjustable On Each Level.
STOP MOTION	Yarn Break, Knot, Press Off, Needle Break, Shock, Over Torque, Piece Count, Over Run, Program Error Etc
DRIVE	AC Servo Motor, Tooth Shape Driving Belt, No Oil Needed. Variable Adjustable Programmable Speed Levels.
TOP TENTIONS	Electronic Top Tensions Easy To Thread The Yarn Through.
YARN FEED UNIT	Auto. Positive Feeding Device On Each Left And Right Side.
SAFETY COVER	Full Safety Cover For Anti-Noise And Dust Proofing. Emergency Stop Buttons.
OPERATION LAMP	Green : Normal Operation. Yellow : Abnormal Stop.
FLUORESCENT LAMP	Inside Of Safety Cover And Fabric Take Down.
CONTROLLER
DATA INPUT	3.5″ Micro Floppy.
OPERATION & DISPLAY	LCD Display Screen, Chinese And English Versions Available.
PATTERN MEMORY	1,024 Wales X 4,096 Courses.
POWER	3 Phase AC 220V 50/60HZ
