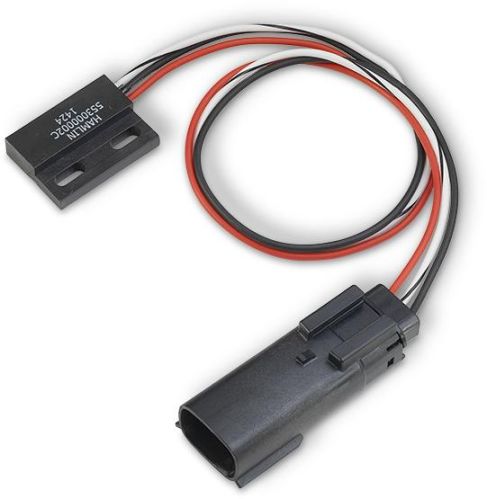

Flat Pack Rotary Hall Effect Sensor

The Littelfuse 55300 series of rotary absolute position sensors provide angular measurement between 0 and 360 degrees. This unit is programmable for very precise ratio-metric absolute output applications. This unit is activated by a remote magnet, thus allowing a larger stack up of mechanical tolerances that are not feasible with the integral magnet version 55250.
The internal design of the sensor uses non-contact magnetic Hall effect technology with options of analog or pulse-width modulated (PWM) output signals. This sensor is immune to the performance limitations of the wiper-based products that are associated with mechanical wear or contamination.
The 55300 package design commonly finds applications within all types of vehicle and industrial segments. Designed to operate in the harsh environments of the industrial and commercial vehicle, the sensor has an operating temperature range between -40°C and 105°C. This unit incorporates automotive grade EMIEMC and reverse battery polarity protection, as well as commercial grade 20 AWG-TXL automotive wire and the option of a Molex-type sealed connector.360° angular sensing range
Absolute rotary position sensor
Analog output
Non-contact measuring
Integral EMC protectionLong life with no wear of components
High speed
Unaffected by harsh environments
Compact, robust package
Applications:
Absolute rotary encoders
Pedal position
Shaft position
Lever position
Float level sensing
Non-contact potentiometer
