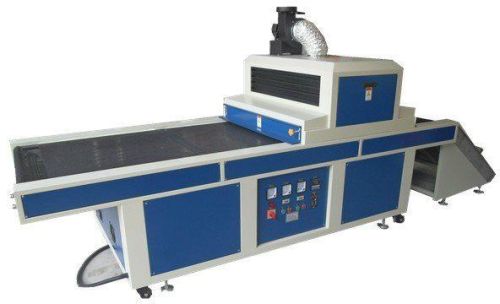

Flat UV Curing Machine With Unloading System TM-800UVF-L

Product name

Flat UV curing machine with unloading system

Model No

TM-800UVF-L

Certificate

CE, ISO-9001-2000

Brand Name

LC,China

Description

Our  LAST NEW UV CURING MACHINE   TM-800UVF-L  be fit to UV drying   PVC  ,PAPER OFFEST UV coating ,UV polishing,UV glue,  soft PCB after  printing UV ink ,  plastic UV printing. electronic product UV spray,   packing products UV drying .

Our UV LAMP  is high UV frequency.( 360-720NM).  It to fit most UV INK ,UV glue. Our UV Lamp useful time can sure  1000-1200 hour. TM speed change.Belt running speed is 0-10M/min.

Advantage

1. The conveyer speed can adjustment according to the products drying condition;
2. Conveyer belt mabe by tefulong materials;
3. Famous brand UV lamp installed ;
4. Cooling fan installed on the side to remove the heat in curing chamber;
5. Tabletop working and save room area

Parameter

1.Model  NO. TM-800UVF-L
2.UV Drying  products：800*100*3000mm
3.Conveyor belt size：L3000* W800MM
4.UV Lamp power：2PCS*3KW /380V
5.Total wattage：7.5KW
6.Wind fan wattage: 500W/380V
7.motor wattage：1000W/1P/380V
8.Conveyor speed：0~10m/min
9.Speed change ways：Continue
10.UV Machine  Dimension：L*W*H3020*850*1450
11.Weight：320kg

Usage

This machine use for connect with offset presses for paper UV cure, such as Heidelberg, Roland, Komori, Ryobi offset press, etc

High Speed UV curing machine

Free fittings

customer

USA, UK, Germany, Spain, South Africa,

Australia,Indonesia,Malaysia, France, India,Mexico,Brazil etc

Delivery time

Within 7 days from the receipt of payment

Loading seaport

Shenzhen or Hong Kong, China

package

Plywood case/wooden case/ as required

Price term

FOB Shenzhen, CFR, CIF, FCA, EXW etc

Payment

term

 100% T/T in advance(negotiation)
