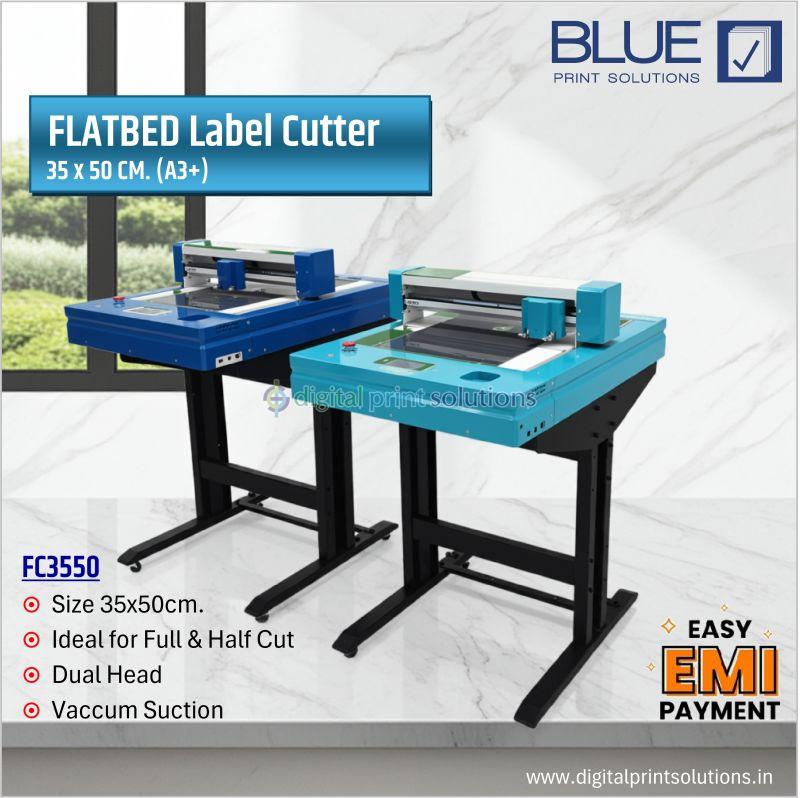

Flatbed Label Cutting Machine [ A3 Plus ]

₹ 1.55 Lakh / piece

Cutting thicknessUpto 1mm
Cutting materialSticky notes, self adhesive, Magnetic stickers etc.
Dimension1114 x 956 x 710mm.
Cutting area400 x 670mm.
Supply TypeSupplier, Distributor, Trader
Preferred Buyer Location Anywhere in India

Company Information

Pendra, Bilaspur, Chhattisgarh

4.3/5

Member Since 13 Years
Nature of Business Retailer
Year of Establishment 2008

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Operating voltage powerAC 220V +-10% / 50 Hz
MotorServo Motor / Stepper Motor
Fixing methodDouble frame adhesive / vaccum adsorption
Command systemHP-GL compatible
Shipping weight130 Kg
Transmission InterfaceUSB / Udisk / WiFi (Optional)
ModelFC3550E
Dimension1114 x 956 x 710mm.
Cutting materialSticky notes, self adhesive, Magnetic stickers etc.
Control panelHD Touch Screen
Working characteristicsComputer operation, Faster data transfer speed, Continuously cutting
Body memory256M
Pen/knife typeOrdinary signature pen, Oil based pen, Ball point pen, Special black steel knives
Mechanical resolution0.05mm.
Cutting area400 x 670mm.
Cutting speedStraight line 1000mm/s Curve 800mm/s
Cutting thicknessUpto 1mm

FC3550E is an intelligent A3 Plus table top die-cutting machine cutting equipment that can complete cutting, drawing, pattern annotation, half cutting and full cutting in one go. It applied in the small batch production of materials such as aluminum film, copper film, copper film, shielding material, insulation material, optical material, conductive tape, special adhesive tape, self adhesive tape, PVC TPU cardboard, copper sheet paper etc. in the electronic industry.

This A3 Plus Table top Flatbed Label Die Cutting machine adopting imported linear guide rail transmission, has fast speed, high accuracy, low sound and stable quality. The independently developed ARM control system has excellent engraving and cutting effect. It can reach the fastest cutting speed upto 1000mm/s.
This machine comprehensively expand various transmission interfaces, USB, USB flash drives (optional WiFi) to create efficient cutting experiences in different scenarios. The LCD high definition touch screen makes the field of view more beautiful and the control more convenient. This A3 plus Flatbed label dies cutter is compatible with vector files such as PLT, EPS, DXF, AI etc. widely used in clothing, shoemaking, luggage and handbags, laser die drawing, lifhting drawing and cutting industries such as Advertising gifts, stickers, color box, packaging and electronics.
