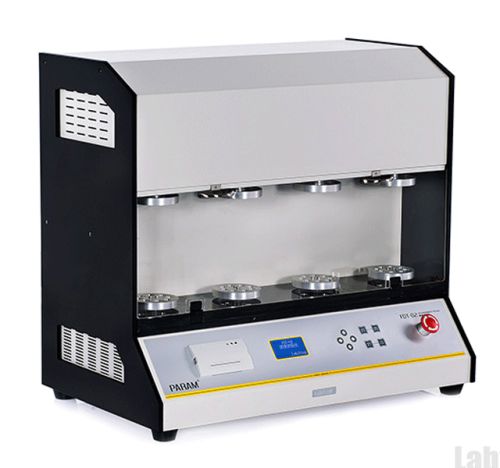

Flex Durability Tester

Get Latest Price

Specimen Thickness≤2.5mm (Sample clamps are needed for other thickness specimen)
Flex Frequency45 /minute
Specimen Size280 mm x 200 mm
Torque2 Nm
Supply TypeManufacturer, Exporter, Supplier, Trader
Preferred Buyer Location All over the world

View More Details

Send Enquiry

Company Information

Polytech Instruments Pvt.Ltd.

Ghodbunder Road, Thane, Maharashtra

View Number

Member Since 18 Years
Nature of Business Exporter
Year of Establishment 2004

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

Instrument Dimension715 mm (L) x 415 mm (W) x 645 mm (H)
Number of Stations4
SpecificationsFDT-02
Flex Angle440° or 400°
Power Supply220VAC 50Hz / 120VAC 60Hz
Torque2 Nm
Horizontal Stroke155 mm or 80 mm
Net Weight85 kg
Specimen Thickness≤2.5mm (Sample clamps are needed for other thickness specimen)
Specimen Size280 mm x 200 mm
Tensile 300 N
Number of Specimens1 ~ 4Note
Flex Frequency45 /minute

FDT-02 is professionally applicable to the determination of flex durability of flexible films, composite films, and coating films. The instrument can simulate the kneading and creasing behaviors of films happened during production, processing and transportation. The flex durability would be obtained by measuring the changes in number of pinholes or barrier properties after test, which could provide quantitative basis for package design and practical usage.

Features

5 standard test modes and 4 specimen stations support various combinations of test conditions
Quick switch between long and short strokes improves the test efficiency
Application of servo motor further ensures the accuracy of test results
Dual protection for hardware and software as well as auto reset provides a safe operating environment for customers
The instrument is controlled by micro-computer, with LCD, menu interface and PVC operation panel.
Equipped with micro-printer for convenient data transfer

Basic Applications	· Flexible Films, Composite Films and Coating Films Including plastic films, sheets and composite films e.g. composite films, aluminized films, aluminum plastic composite films, nylon films and coating films for food or drug packages
	· Paper Materials Test the flex durability of paper materials
