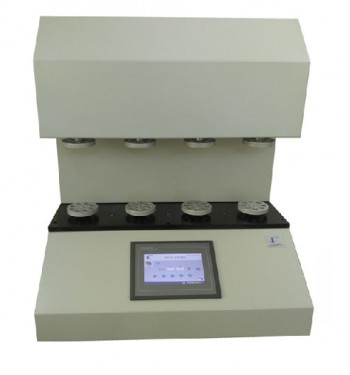

Flex Durability Tester For Barrier Material

₹ 90,500 - ₹ 5.43 Lakh / Set

MOQ1 Set(s)
Test stations4
Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Flex durability tester for barrier material is used to measure the resistance against repetitive strain for films, composites and coating films, etc. Flex failure is determined by measuring the....

Company Information

Member Since 11 Years
Nature of Business Manufacturer
Year of Establishment 2013

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Flex durability tester for barrier material is used to measure the resistance against repetitive strain for films, composites and coating films, etc. Flex failure is determined by measuring the pinholes formed in the sample structure. It is also called Gelboflex.
Flex durability tester for barrier material technical data
Flex Frequency 45 minute
Flex Angle 440° (90 mm) or 400° (80 mm)
Horizontal Stroke 155 mm or 80 mm
Stations 4
Sample size 280 mm x 200 mm
Features
1. PLC control and 7 inch touch screen operation
2. 5 standard test modes and 4 test stations
3. Long and short stroke fast switching
4. Micro printer(Optional)
Standard: ASTM F392, "Flex durability of flexible barrier materials".
