Contact Supplierflexible graphite coiled material & flexible graphite gasket
uses and performances:

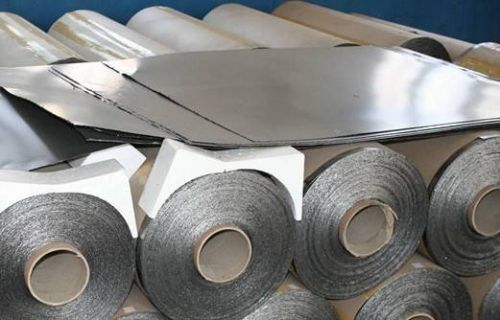

flexible graphite coiled material, which is produced by rolling expansible graphite granules, is the main material for producing various flexible graphite sealing pieces.
main technical parameters:
temperature of use:-200� ---600�
pressure of use: 10 mpa
medium of use: strong acid, strong base, steam, various solvents and oil.
specifications:
flexible graphite coiled material’s specifications are shown in the table below.flexible graphite gasket can be processed into various kinds according to consumers’requirements.
density g/cm3 | length m | width mm | thickness mm |
0.8-1.2 | 100 | ≤1000 | 0.2-1.0 |
this product are widely used as equipments of modern industry, such as seal rings for centrifugal pumps, reacting pots for chemical engineering, hydraulic generators and rotate baking furnace; piston rings and bushings for vacuum pumps, air compressors and pumps of printing machines; bursting discs in chemical equipments; distributing discs and radial blocks in equipments, etc.
.
