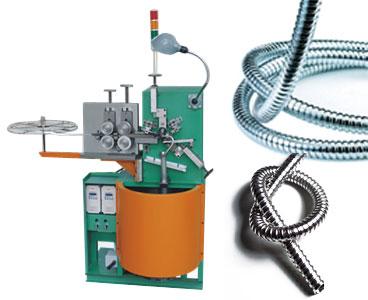

Flexible Metal Conduit Machine

We are offering flexible metal conduit machine. The blow out protection armor conduit is loose wounded, and interlocked protective armor hose, which was desinged for both armor and blow out protection. This flexible conduit is widely used to protect from abrasion, chemical contacts, crusing or even bending abuse. The plastic, pvc hoses or rubber hose can be protected, and also the conduit for wire or pipes. The mc 30 machine can make the metal armor conduit ranging from 12" to 1".
Features
1 welded structure
2 galvanized stainless steel conduit
3 single double lock
echnical data
model fmc1223
tube diameter 12~23mm
steel strip thickness 0.16~0.25mm
strip width 7.1~9.5mm
ducting speed 80mhour
lock type single double lock
raw material galvanized, stainless steel
main power 380v3p1.5kw
dimension 1100*1200*1500mm
weight 350kg
