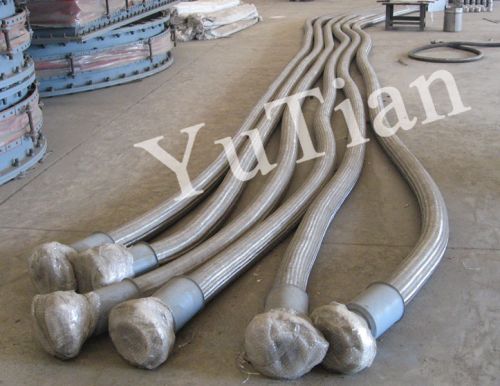

Flexible Metal Hose

we offer flexible metal hose.
1: annular hose
specification:
1) nominal diameter ranges from 20 to 700. (mm)
2) inner diameter ranges from 20.4 to 691. (mm)
3) the outer diameter: 28 - 810. (mm)
if the annular bellow is covered with one layer of net, its outer diameter ranges from 30 to 815. (mm)
4) in the static state, the minimum bending radius ranges from 100 to 3500, while, in the dynamic state, from 180 to 7000. (mm)
5) one layer net: nominal pressure ranges from 5.0 to 0.6. (mpa)
two layers nets: nominal pressure ranges from 8.0 to 1.0 (mpa)
2: helical hose
specification:
1) nominal diameter ranges from 6 to 50. (mm)
2) inner diameter ranges from 6.3 to 50.8. (mm)
3) the outer diameter of the spiral bellow ranges from 9.0 to 61.5. (mm)
if the spiral bellow is covered with one layer of net, its outer diameter ranges from 10.5 to 63.5. (mm)
4) in the static state, the minimum bending radius ranges from 35 to 240, while, in the dynamic state, from 150 to 780. (min)
5) one layer net: nominal diameter ranges from 6.4 to 2.5. (mpa)
two layers nets: nominal diameter ranges from 10.0 to 4.0. (mpa)
3: hose assembly
4: hose coupling
