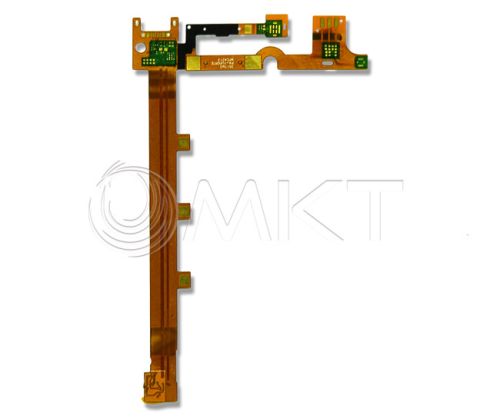

Flexible pcb

Flexible pcb
flexible circuit fabrication
a flex printed circuit or flex pcb is a basically a flexible base material, with a patterned arrangement of printed circuitry on copper and components, with or without flexible overlay. These flexible electronic assemblies may be fabricated using the same components used for rigid printed circuit boards, but allowing the board to conform to a desired shape (flex) during its application.
Flexible pcb fpcb applications
fpcbs are used widely in everyday technology and electronics in addition to high-end, complex completed components. Two of the most prominent examples of flexible circuit usage is in modern portable electronics, devices, hard disk drives and desktop printers.
Flexible circuits are also used extensively in other applications and industries including:
communications
consumer electronics
automotive
medical
industrial
aerospace
military
transportation
in automotive, transportation they are extensively used due to their improved resistance to vibrations and movement.
Flex pcb capacity
material type:
pi, pet, pen, fr-4.
Surface finishing: lead-free,
enig gold, osp, immersion silver, immersion tin. Hasl. Polyimide, pet.
Max layer: flex board: 1-6layer, flex-rigid board:2-8 layers.
Min. Hole size:
punching hole: 0.50mm
drill hole:0.20mm
max panel size: 250mm*400mm.
Min. Board thickness:
copper thickness:13oz-2oz
min slot: 24mil*35mil(0.6x0.9mm)
size tolerance
conductor width: +-10%
hole size: +-0.05mm.
Single:0.1mm
2layers: 0.13mm
4layers: 0.30mm
6layers:0.50mm
