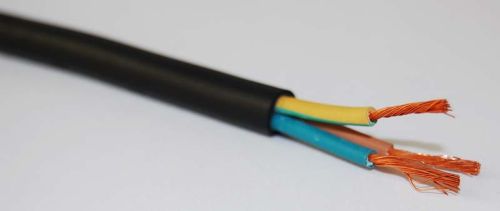

Flexible Rubber Cable h07rn-f/h05rn-f/h05rr-f/h05rn-f 300/500v

We offer h05rr-f 3g1.5 flexible rubber cable, felxible rubber cable, rubber insulated cable, rubber sheath cable
300500v vde approval rubber cable
epdm cpe insulated cable
suppior soft cable
rubber cable & welding cable-europe-h07zz-f specification
explain:
reference standard: iec 60332-3 rated voltage:450750v rated temperature:-25°c to 65°c
conductor:copper or tinned copper insulation: halogen–free elastomer sheath: halogen –free elastomer
application: for installation where fire, smoke emission and toxic fumes create a potenitial threat to life and equipment…etc.
No. Of cores x normal cross sectional area of conductor(mm2) normal diameter of strand(mm) normal thickness of insulation(mm) normal thickness of jacket(mm) over diameter of cable(mm) max conductor resistance at 20°c(≤ωkm)
2x1.0 0.2 0.8 1.3 8.3±0.5 19.5
2x1.5 0.253 0.8 1.5 9.3±0.5 13.3
2x2.5 0.253 0.9 1.7 11.2±0.5 8
2x4 0.3 1 1.8 12.8±0.5 5
2x6 0.3 1 12 14.4±0.5 3.3
3g1.0 0.2 0.8 1.4 9.0±0.5 19.5
3g1.5 0.253 0.8 1.6 10.1±0.5 13.3
3g2.5 0.253 0.9 1.8 12.1±0.5 8
3g4 0.3 1 1.9 13.9±0.5 5
3g6 0.3 1 2.1 15.4±0.5 3.3
4g1.0 0.2 0.8 1.5 9.9±0.5 19.5
4g1.5 0.253 0.8 1.7 11.1±0.5 13.3
4g2.5 0.253 0.9 1.9 13.3±0.5 8
4g4 0.3 1 2 15.2±0.5 5
4g6 0.3 1 2.3 17.2±0.5 3.3
5g1.0 0.2 0.8 1.6 11.0±0.5 19.5
5g1.5 0.253 0.8 1.8 12.2±0.5 13.3
5g2.5 0.253 0.9 2 14.6±0.5 8
5g4 0.3 1 2.2 16.9±0.5 5
5g6 0.3 1 2.5 19.1±0.5 3.3
7g1.5 0.253 0.8 2 18.5 13.3
12g1.5 0.253 0.8 2.5 22.4 13.3
19g1.5 0.253 0.8 3.2 27.5 13.3.
