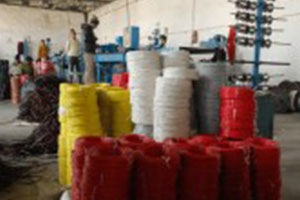

Flexible Wires

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

We produce Hook-up and Flexible Wires which are applied in interconnection circuits, internal wiring of computer and data processing equipment, appliances, lighting, motor leads, heating and....

View More Details

Send Enquiry

Company Information

BHARAT TRADING CORPORATION

Budhwar Peth, Pune, Maharashtra

View Number

Member Since 7 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

We produce Hook-up and Flexible Wires which are applied in interconnection circuits, internal wiring of computer and data processing equipment, appliances, lighting, motor leads, heating and cooling equipment, harness fabrication and automotive industry. The product is available in a huge range of shades and packages, ready-to-source them off the shelf from our distributors. For specific requirements by clients, they can be customized in a timely and cost-effective way.
Double Flexible Wires are a pair of twisted cables suited best for speakers & P.A. System installations. The wires are specially designed to negate any outside signal interference. These wires are able to handle analog and digital signal transmissions.

Flexible Wires :-

S.No.	No. of Strands (SWG)	No. of Strands	ATC Cond. Size in mm	Area(Sqmm)	O.D (mm)	Cr. At 20ºC Ω/Km
1	105/46 SPC	105	0.06	0.297	1.8	66.99
2	14/44 SPC	14	0.08	0.070	0.8	250.00
3	14/44 ATC	14	0.08	0.070	0.8	250.00
4	40/44 ABC	40	0.08	0.201	1.15	95.21
5	60/44 ATC	60	0.08	0.301	1.6	65.50
6	120/44 ATC	120	0.08	0.603	1.9	32.60
7	55/43 SPC	55	0.09	0.350	1.6	56.00
8	110/43	110	0.09	0.699	1.9	28.00
9	7/42 Thin	7	0.1	0.055	0.7	350.50
10	7/42 (501)	7	0.1	0.055	1.2	350.50
11	19/42	19	0.1	0.149	1.35	134.60
12	23/42	23	0.1	0.181	1.6	135.88
13	90/42 BC	90	0.1	0.707		27.90
14	200/42 SPC	200	0.1	1.570	4.5	12.66
15	14/40.	14	0.12	0.158		121.65
16	7/39 (502)	7	0.13	0.093	1.15	209.30
17	7/39.	7	0.13	0.093	1.5	209.30
18	14/39.	14	0.13	0.186	1.8	104.70
19	23/39	23	0.13	0.305	2.25	64.20
20	40/39	40	0.13	0.531		40.50
21	7/38.	7	0.15	0.121	1.4	157.90
22	14/38	14	0.15	0.217	1.6	79.00
23	14/38 (H)	14	0.15	0.217	1.9	79.00
21	20/38 ABC	20	0.15	0.353	2.1	55.50
25	23/38	23	0.15	0.406	2.2	48.00
26	7/37 (503)	7	0.17	0.159	1.25	121.50
27	7/37 (504)	7	0.17	0.159	1.4	121.50
28	14/37 (505)	14	0.17	0.318	1.55	61.00
29	7/36.	7	0.19	0.198	1.4	97.80
30	14/36.	14	0.19	0.397	1.75	49.00
31	23/36	23	0.19	0.652	2.4	29.80
32	40/36.	40	0.19	1.134	2.75	17.20

Double Flexible Wires :-

S.No	No. of Strands (SWG)	No. of Strands	Cond. Size in mm	Area(Sqmm)	O.D (mm)	Cr. At 20ºC Ω/Km
1	1/26.	1	0.45	0.159	1.15	116.85
2	1/25.	1	0.51	0.204	1.2	90.49
3	14/39 ATC	14	0.13	0.186	1.7	103.42
4	14/39 ABC	14	0.13	0.186	1.8	100.41
5	14/42	14	0.1	0.110	1.7	168.25
6	14/40	14	0.12	0.158	3.5	121.00
7	23/39	23	0.13	0.305	2.2	62.95
8	23/38	23	0.15	0.406	2.5	47.43
9	23/36	23	0.19	0.652	2.5	29.05
10	40/40	40	0.12	0.452	3.5	42.76
11	40/38	40	0.15	0.707	3	27.28
12	14/36	14	0.19	0.397	1.9	46.75
13	23/36	23	0.19	0.652	2.5	28.50
14	40/36	40	0.19	1.134	3	16.70
