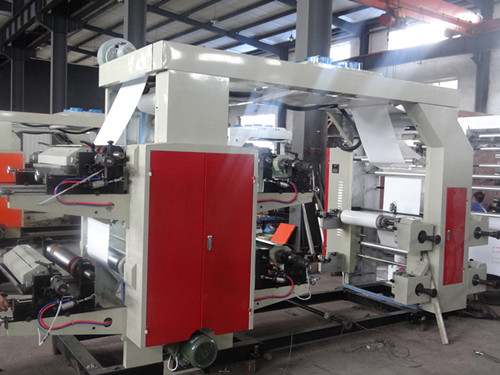

Automatic Flexo Printing Machine, Plate Type : Flexography

We are offering Flexo Printing Machine.
Features:
1>.Easy operation,flexible starting accurate color register.
2>.The meter counter can set printing quantity according to the requirement.Stop the machine automatically at the set quantity or when the material is cut off.
3>.Lift and lower the printing plate cylinder manually,It will automatically stir the printing ink after lifting
4>.The printing ink is spread by the knurled cylinder with even ink color.
5>.Reliable drying system coordinated with high-speed rotation,it will automatically break circuit when the machine stops.
6>.360 continuous and adjustable longitudinal register device.
7>.The frequency control of motor speed adapts to different printing speeds.
8>.There are inchingStopping buttons on the plate roller base and material rolling rack so as to make it easy operate the machine when the plate is installed.
Main Parameters:
A.：Model：YT-4600
B：Material ：Film, Non-woven fabric, Paper, Aluminum and so on
C：Max. Effective Width of Printing: 560mm
D：Length of Printing: 200-1000mm
E：Speed of Material Printing 10-50mmin
F：Thickness of Plate: 2.38mm
G：Machine dimension: 5000*1700*2200mm
H、Machine weight：3200kg.
