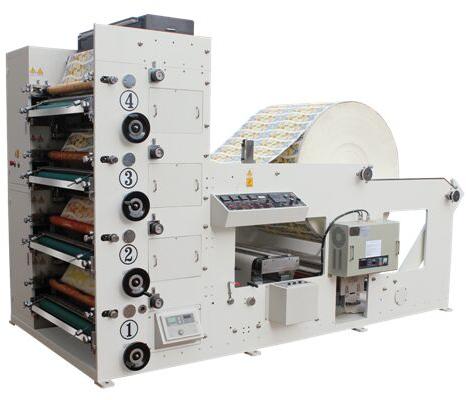

Flexographic Printing Machine

Supply TypeManufacturer, Exporter, Supplier, Retailer
Preferred Buyer Location All over the world

One mounting device One anilox roller for each group Two sets printing rollers (2*4=8) One unwinding tension controller (Mitsubishi Japan) One rewinding tension controller (Mitsubishi....

Company Information

Member Since 11 Years
Nature of Business Retailer

Ask for more detail from the seller

Contact Supplier

Report incorrect details

View Company Details

Product Details
Company Details

One mounting device
One anilox roller for each group
Two sets printing rollers (2*4=8)
One unwinding tension controller (Mitsubishi Japan)
One rewinding tension controller (Mitsubishi Japan)
Hydraulic Loading
Hydraulic downloading

Characteristics

Adopt the ceramic anilox rollers to spread ink.
Unwinding and rewinding controlled by magnetism power brake, clutch. (for by the automatic tension controller of mitsubishi, made in Japan).
Printing unit adopt 360º for registration.
Each printing unit has one IR drier.
The rubber roller can break away automatically while parking, and running at a low speed, in order to avoid water being dried.
The main motor is adopted the import stepless regulation of frequency conversion.
Unwinding, printing, varnishing, IR drying, laminating and rewinding can be finished in one process.

Printing speed	60m/min
Printing color	4 colors
Max. Web width	960mm
Max. Printing width	950mm
Max. Unwinding diameter	1100mm
Max. Rewinding diameter	800mm
Printing girth	250-580mm
Precision of chromatography	±0.15mm
Dimensions	2500L1450W 3300H(mm)
Machine weight	About 4500kg
