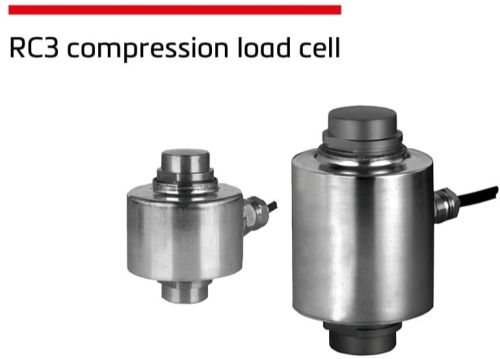

Flintec Rc3 Compression Load Cell - 30 Ton

₹ 24,499 - ₹ 24,500 / UNIT

MaterialAlloy Steel
Brand NameFlintec
Packaging TypeANY
PurityHigh input resistance
Supply TypeSupplier, Trader
Preferred Buyer Location All over the world

Company Information

Asarwa, Ahmedabad, Gujarat

4.3/5

Member Since 10 Years
Nature of Business Retailer
GST No. 24AZFPS4845P1ZN

Ask for more detail from the seller

Report incorrect details

Product Details
Company Details

Brand NameFlintec
MaterialAlloy Steel
Packaging TypeANY
ApplicationTruck Scales
Capacity30 TON
Number Of FlowerCompression Load Cell
ModelRC3
Ingress protectionIP68
PurityHigh input resistance
Creep Error (30 minutes)%*RO +- 0.0600 +- 0.0490 +- 0.0166 +- 0.0062 +- 0.0125
Temperature Effect on Output%*RO/10 DegreeC +- 0.0400 +- 0.0280 +- 0.0093
Maximum Safe Overload200%FS
Input Resistance1,150 +- 50
Ultimate Safe Overload300%FS
Combined Error%*RO +- 0.0500 +- 0.0300 +- 0.0200 +- 0.0180 +- 0.0180
Output Resistance1,000 +- 2
Cable Length12m for 7.5 to 22,5 t

product description :
Flintec pioneered the concept of the single column compression load cell – the RC3. Compact and yet very robust the RC3 is available in a very wide range of capacities from 7.5t through to 300t. The rocker column design ensures that the optimum weighing accuracy is achieved when subjected to scale deck movement. Fully hermetically sealed and constructed from stainless steel the RC3 is a more economical solution to the RC1 load cell
applications :
Truck scales, railroad scales, high capacity scales, silo weighing systems.
key features :
