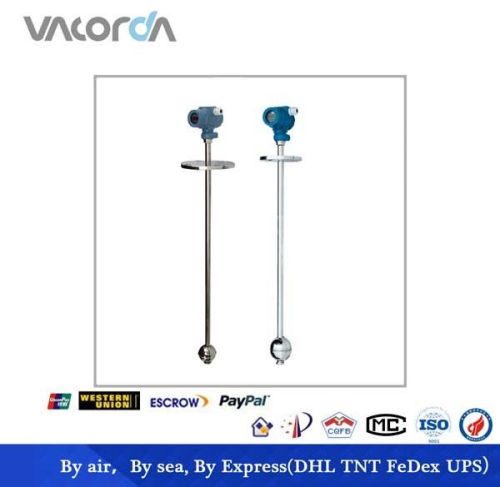

Float Ball Liquid Level Meter

Supply TypeManufacturer, Exporter, Supplier
Preferred Buyer Location All over the world

Float Ball Liquid Level Meter finds extensive usage in testing liquid level of media in storage tanks. Headquartered in China, we are involved in manufacturing and supplying Float Ball Liquid Level Meter. The Float Ball Liquid Level Meter that we offer indicates status and heights of various liquids. Our Float Ball Liquid Level Meter has a displayer integrated with indicator and is known for its transmission accuracy.

View More Details

Send Enquiry

Specifications

Measuring range	200~6000mm(>6M customize)
Resolution factor	10mm,5mm,20mm
Signal output	4~20mA(two -line)
Signal output	200Ω/m(1/2'', 3/8'')
Loading resistance	500Ω
Transmitting	<1000m
Working power supply	16~30VDC
Density	< 0.5g/cm³
Pressure	PN2.5~PN160(×0.1MPa)(Max pressure PN320)
Operating temperature	-40 ~ 80 °C, 120 ^oC, ¦150 ^oC
Float ball diameter	Ð¤30~Ð¤120 - depending on pressure and density
Flange installation	DN40~DN150/RF/PL(HG/T20592~2009) customize
	2'' thread (downward install)
	1/2'' thread (upward install, resistance signal output)
	3/8'' thread (upward install, resistance signal output)
Installation angle	±25^o
Electrical connection	M20×1.5 female thread
Electrical connection	Three-lines screening cable
IP grade	IP65
Explosion-proof grade	Exia II CT6Ga, EXd II CT6Gb
